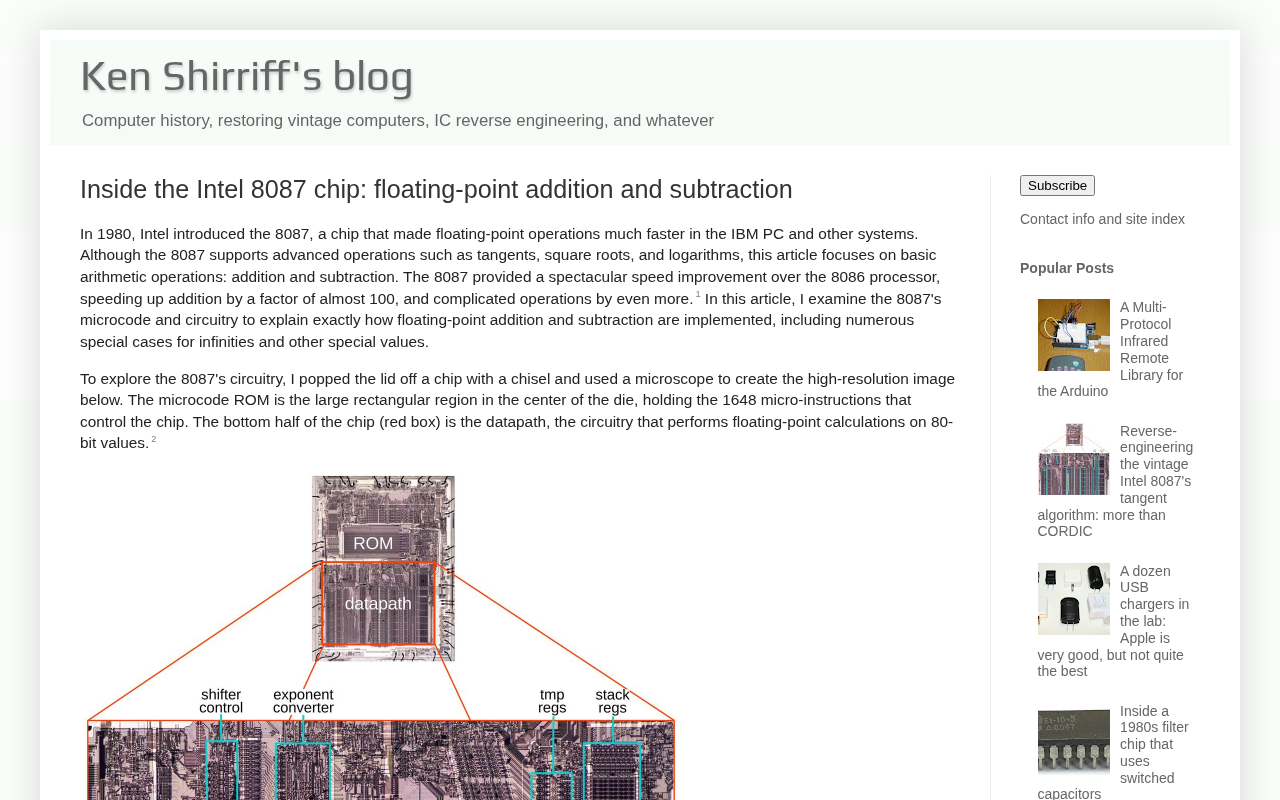

Intel 8087 Floating-Point Addition and Subtraction: The Hardcore Wisdom of an Old Chip

The Historical Weight of a Coprocessor

Intel 8087 was the first floating-point coprocessor in the x86 ecosystem. Working alongside the 8086/8088, it offloaded floating-point operations that previously required software emulation to dedicated hardware. Before the 8087, floating-point addition and subtraction had to be assembled from compiler-generated integer instruction sequences—slow and bulky in code size. The arrival of the 8087 gave personal computers numerical computing capability approaching that of minicomputers for the first time.

The floating-point addition and subtraction implementation in this chip encapsulates the typical trade-offs of 1980s hardware design: tight transistor budgets, instruction cycles counted in clock ticks, and engineers forced to repeatedly balance precision, speed, and area. For this reason, the 8087's adder/subtractor circuitry is still used as a classic case study in digital design courses today.

The Core Difficulty of Floating-Point Addition and Subtraction

Aligning Exponents Is the Real Cost

Floating-point addition seems simple: add two numbers. But the exponents of two operands may differ greatly, and the hardware must first perform exponent alignment—right-shifting the mantissa of the smaller-exponent operand until the exponents match, then performing mantissa addition/subtraction. Right-shifting loses low-order bits, which is the source of rounding error.

The 8087 uses an 80-bit extended-precision internal format with a 64-bit mantissa. The larger the exponent difference, the more bits need to be right-shifted, and the greater the workload on the hardware shifter. Designers introduced a key decision for this: if the exponent difference exceeds a certain threshold, the smaller operand's contribution to the result can be ignored, and the operation is short-circuited directly, saving multiple cycles. This "early exit" logic was not common in chips of that era.

Composition of the 80-bit Extended-Precision Format

The 80-bit extended-precision format used internally by the 8087 consists of three parts: 1 sign bit, 15 exponent bits, and 64 mantissa bits (including 1 explicit integer bit). Unlike the hidden-bit scheme of single and double precision, extended precision stores the integer bit explicitly, which brings the effective mantissa precision to 64 bits. The 15-bit exponent uses a biased representation with an offset of 16383, covering a dynamic range of approximately 10^-4932 to 10^4932. Wider exponents and mantissas mean more low-order information can be retained during alignment shifts, resulting in smaller rounding errors. This is also why the 8087 performs addition and subtraction internally in extended precision and only rounds to single or double precision when writing back to memory—the extra precision of intermediate results significantly improves the numerical stability of chained operations. Understanding this format is the prerequisite for understanding the subsequent cost of exponent alignment and the rounding correction path.

Rounding Modes and Exception Handling

The 8087 supports four rounding modes: round to nearest, round toward zero, round toward positive infinity, and round toward negative infinity. After normalization, the mantissa of an addition result may have several extra bits, and the hardware must decide whether to carry based on the current rounding mode. A carry may cause mantissa overflow, which in turn requires incrementing the exponent, forming a chained correction path.

Exception handling is equally indispensable. Addition and subtraction may produce exceptions such as invalid operation, overflow, underflow, and inexact. The 8087 records exception flags in a status word and uses a control word to decide whether to trigger an interrupt. This mechanism was later absorbed into the IEEE 754 standard and became the common language of modern floating-point units.

Gradual Underflow and Denormalized Numbers

During the development of IEEE 754, the 8087 also contributed a key mechanism: gradual underflow. When a result is smaller than the smallest normalized number, traditional designs would flush it directly to zero, causing a sudden collapse in precision. The 8087 instead outputs denormalized numbers—the exponent is fixed at its minimum value, and the mantissa no longer has an implicit leading 1—thereby preserving gradual precision near zero. This design makes addition and subtraction results near underflow still predictable, avoiding the abrupt case where "two extremely small numbers are subtracted and the result is zero." Handling denormalized numbers also imposes an extra burden on hardware: the adder/subtractor circuit must be able to recognize and correctly operate on denormalized operands, and some implementations even require additional normalization steps. The 8087 handles these boundary cases with microcode, at the cost of increased cycle counts, in exchange for consistency in numerical behavior. This is precisely why IEEE 754 later listed it as a mandatory feature.

Engineering Implementation Details of the 8087

Hybrid Control of Microcode and Hardwired Logic

The 8087 is not a fully hardwired design. Its addition and subtraction are driven by microcode sequences stored in internal ROM on the chip. The advantage of microcode is that complex control logic can be expressed in compact encodings, at the cost of each microinstruction consuming clock cycles. For operations with a variable number of steps such as exponent alignment, the flexibility of microcode is more advantageous than pure hardwired logic.

Some analyses point out that the 8087's addition microcode takes a short path when the exponent difference is small and enters a loop-shift branch when the difference is large. This branching structure brings average latency close to that of typical use cases rather than the worst case.

Stack Architecture and Register Organization

The 8087 uses a stack-based register structure, with eight 80-bit registers forming a circular stack. Addition and subtraction instructions by default operate on the top two elements of the stack, with the result written back to the top. This design naturally maps expression evaluation to stack operations, but it also requires the hardware to carefully distinguish operand order when handling non-commutative operations (subtraction).

Subtraction is not an independent circuit inside the 8087; instead, it shares the data path with addition through two's complement negation (invert and add one). Handling the sign bit and adjusting the alignment order are the most error-prone parts of the subtraction microcode.

The Origin of the IEEE 754 Standard

The 8087's floating-point formats and exception-handling mechanisms directly influenced the IEEE 754 standard published in 1985. Before the 8087, floating-point representations varied widely among computer manufacturers: different exponent biases, different mantissa widths, and inconsistent rounding rules, causing the same floating-point program to produce inconsistent results on different machines. When designing the 8087, Intel collaborated with Professor William Kahan of the University of California, Berkeley, to establish a floating-point model centered on hidden bits, normalized numbers, four rounding modes, and five classes of exceptions. Kahan later received the Turing Award for this work. IEEE 754 standardized this model, specifying single precision (32-bit), double precision (64-bit), and the extended precision (80-bit) format used by the 8087. Today, the floating-point units of almost all general-purpose processors and GPUs follow this standard, so understanding the 8087's addition and subtraction design is in effect understanding the decision logic of the common ancestor of modern floating-point hardware.

Lessons for Today

The 8087's floating-point addition and subtraction implementation demonstrates one thing: the precision problem of floating-point arithmetic is not a minor software patch, but a constraint that must be confronted head-on from the circuit design stage. Concepts such as exponent alignment, rounding modes, and exception flags still hold in GPUs and AI accelerators more than forty years later, only the scale has expanded from 64-bit mantissas to hundreds of bits in parallel.

For today's hardware learners, the 8087 is an extremely information-dense specimen. Its data path is not wide, yet its control logic is complex enough—positioned precisely between "comprehensible" and "challenging." Understanding how it handles a single addition with rounding builds intuition better than memorizing the clauses of IEEE 754.

Discussions on HN confirm this as well: the value of old chips lies not in nostalgia, but in the fact that they preserve the traces of design decisions intact.

One-line Summary

Intel 8087's floating-point addition and subtraction design encapsulates the classic trade-off among precision, speed, and area, and laid the foundation for IEEE 754.

Paragraph Summary

Using the Intel 8087 floating-point coprocessor as a specimen, the article dissects the real cost of floating-point addition and subtraction at the hardware level. The core difficulty lies in exponent alignment: the larger the exponent difference between two operands, the more bits the mantissa must be right-shifted, and the 8087 introduces an exponent-difference threshold short-circuit to shorten average cycles. Its rounding modes and exception flag handling were later absorbed into IEEE 754. In engineering implementation, the 8087 uses microcode to drive addition and subtraction, subtraction reuses the addition data path through two's complement negation, and the stack-based register structure naturally maps expression evaluation. The article points out that constraints such as exponent alignment, rounding, and exceptions must be confronted head-on from the circuit design stage, and traces of its design remain clearly visible in today's GPUs and AI accelerators.
