Machine Vision in Practice: Camera Selection Guide for Detecting 40mm Markers from 2.5 Meters Above

Background: Overhead Stone Slab Imaging and ArUco Marker Detection

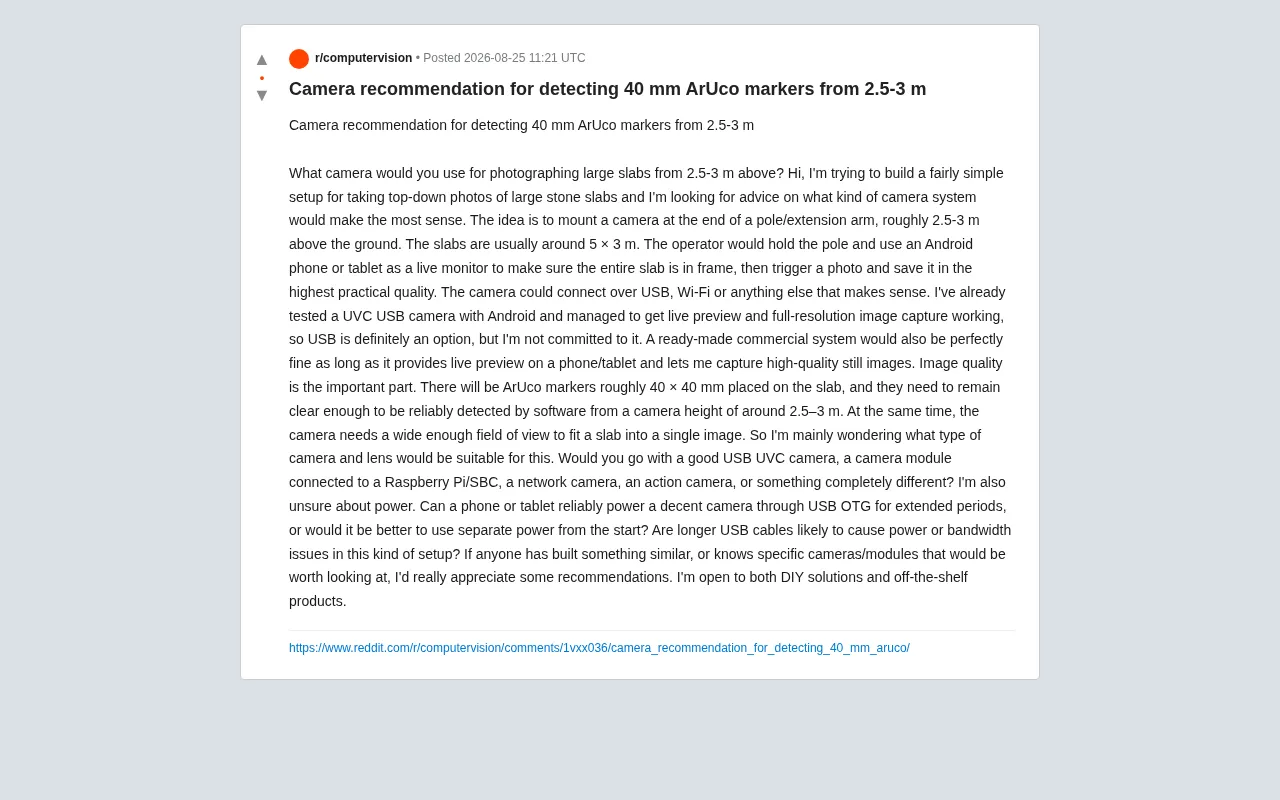

In industrial vision and automated measurement, building a simple yet reliable camera system to capture high-quality images of large-format objects is a challenge that's both fundamental and surprisingly tricky. Recently, a developer on Reddit posted a highly representative real-world requirement: set up a top-down imaging system for large stone slabs (approximately 5×3 meters), with the camera mounted at the end of an extendable pole roughly 2.5–3 meters above the ground. The operator holds the pole while using an Android phone or tablet as a live viewfinder, confirms the entire slab is in frame, then triggers a capture and saves a high-quality image.

While this sounds straightforward, it involves multiple interdependent factors: field of view, resolution, detection accuracy, power supply, and data transmission. One particularly critical requirement: the slabs will have approximately 40×40mm ArUco markers placed on them, which must remain clearly visible and reliably detectable by software at the 2.5–3 meter shooting height. This creates a classic engineering trade-off between wide field of view and fine detail.

Core Challenge: Balancing Resolution and Field of View

Pixel Budget: Minimum Requirements for ArUco Marker Detection

There's a well-known rule of thumb for reliable ArUco marker detection: the marker's edge length should span at least 20–30 pixels in the image, with 40+ pixels being ideal for stable decoding of the four corner points and the internal code grid.

Let's run a quick estimate. Assuming the system needs to cover a 5-meter-wide slab, the horizontal span of the frame corresponds to roughly 5000mm. A 40mm marker occupies approximately 40/5000 = 0.8% of the frame width.

• With a 1080p (1920px wide) camera, the marker spans only about 1920 × 0.8% ≈ 15 pixels — at or below the reliable detection threshold;
• With a 4K (3840px wide) camera, the marker spans about 3840 × 0.8% ≈ 30 pixels — just meeting the lower bound for reliable detection;
• With a higher-resolution sensor (e.g., 6000px wide), the marker reaches 48 pixels, making detection very robust.

The conclusion is clear: this system needs at least 4K resolution — and higher is safer. A 1080p UVC camera may be easy to set up, but it simply won't cut it for this scenario.

Lens Field of View and Distortion Control

Covering a 5-meter width from a height of 2.5–3 meters requires a fairly wide field of view. At 3 meters height covering 5 meters width, the required horizontal FOV is approximately 2 × arctan(2.5/3) ≈ 80°. This falls in the wide-angle range — but wide-angle lenses introduce barrel distortion, which warps the edges of ArUco markers and degrades corner extraction accuracy.

For lens selection, prioritize wide-angle fixed-focal-length lenses with low distortion, and make sure to perform proper camera calibration on the software side, using undistortion as a preprocessing step before marker detection. In OpenCV, this is handled via cv2.calibrateCamera and cv2.undistort.

Solution Comparison: Pros and Cons of Five Camera Approaches

The original post mentioned several directions including UVC USB cameras, Raspberry Pi camera modules, IP cameras, and action cameras. Let's evaluate each.

1. UVC USB Camera (Plug-and-Play Approach)

The advantage is seamless integration: connect directly to an Android device via USB OTG for live preview and full-resolution captures — the author already had a working workflow. The downside is that consumer-grade UVC cameras rarely offer truly high-resolution still capture, with most limited to 1080p or 4K video stream resolution. If you can find an industrial-grade UVC camera that supports high-resolution still capture, this is the most integrated solution.

2. Raspberry Pi / SBC + High-Resolution Camera Module

The Raspberry Pi HQ Camera (12.3MP) or Camera Module 3, paired with an appropriate lens, can produce high-quality still images. The system is open and programmable, capable of running OpenCV for ArUco detection directly on-board. The trade-off is the need for a separate power supply and an extra single-board computer, increasing overall weight and complexity. Live preview requires a custom setup (e.g., streaming over Wi-Fi to a tablet).

3. IP Camera / GigE Vision Camera

Industrial network cameras (e.g., GigE Vision interface) offer high resolution and stable data transmission, ideal for fixed installations — but they're typically expensive, and in a mobile scenario involving a handheld pole and tablet monitoring, running network and power cables becomes cumbersome.

4. Action Cameras (GoPro, etc.)

Action cameras like GoPro offer high resolution and wide angles, but their severe wide-angle distortion and lack of access to raw unprocessed images make them poorly suited for precision marker detection. Generally not recommended for measurement applications.

5. Overall Recommendation

For rapid deployment, an industrial UVC camera supporting 4K+ still capture paired with a wide-angle low-distortion lens is the most hassle-free choice. For flexibility and cost control, the DIY route with a Raspberry Pi and high-resolution camera module offers more customization.

Power and Data Transmission: Engineering Details That Are Easy to Overlook

The power supply concern raised in the original post is very practical. Relying on a phone or tablet to power a camera via USB OTG over extended periods is unreliable — the phone's battery drains quickly, and many phones have limited OTG output current (typically only 100–500mA), which may not be sufficient to sustain a high-resolution camera.

It's best to plan for independent power from the start: use a powered USB hub with its own power input, or equip the camera with a dedicated portable battery pack. This ensures stable camera operation while extending the tablet's battery life.

Regarding long USB cable transmission: USB 2.0 reliably transmits up to about 5 meters; beyond that, signal attenuation can cause dropped frames, disconnections, or insufficient power delivery. In a 2.5–3 meter extendable pole setup, the cable length may be pushing this limit. Consider using an active USB extension cable with built-in signal amplification, or switch to a Wi-Fi wireless transmission solution to eliminate cable issues entirely.

Summary: Four Core Principles for Overhead Camera Selection

For engineering requirements involving overhead imaging combined with marker detection, here are the key guidelines:

1. Prioritize resolution: 4K minimum, higher if possible — ensure the 40mm marker occupies 30+ pixels in the frame;
2. Choose a low-distortion wide-angle lens, and always perform camera calibration and undistortion preprocessing;
3. Power independently — don't rely on tablet OTG power; use an active extension cable for long runs or switch to wireless;
4. For fast deployment, choose an industrial UVC camera; for flexibility, go with a Raspberry Pi module.

This case illustrates a broader truth: even a "simple" imaging system requires precise engineering calculations and trade-offs at every level — from pixel budgets and optical distortion to power supply and data transmission. The reliability of a vision system often comes down to the details that are easiest to overlook.
