Neuraltrust TrustGate vs TrueFoundry: A Practical Guide to Choosing a Multi-Model Gateway

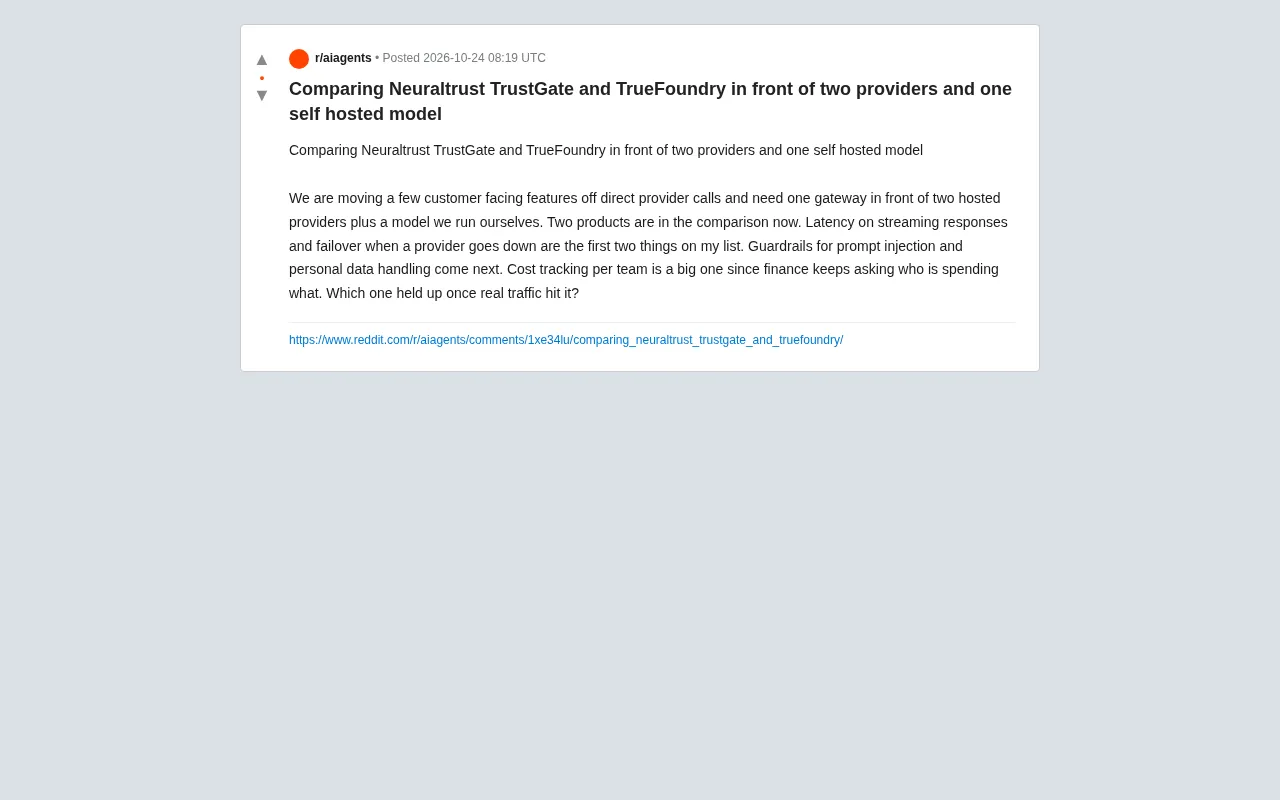

When a team prepares to migrate customer-facing features from calling model providers directly to routing through a unified gateway, the selection questions become very concrete: streaming response latency, failover, prompt injection protection, personal data handling, and per-team cost tracking. A developer raised this exact scenario in the community: two hosted providers plus one self-hosted model, choosing between Neuraltrust TrustGate and TrueFoundry, with a focus on performance under real traffic. This article builds on that discussion and, combined with the publicly available capabilities of both products, offers an actionable evaluation framework.

Why You Need a Unified Gateway

Calling multiple model providers directly means every feature has to re-implement authentication, retries, rate limiting, and logging. When one provider goes down, business code has to handle degradation on its own; when finance asks "which team spent how much," the bills are scattered across places and hard to attribute. The value of a unified gateway is consolidating these cross-cutting concerns into one layer: exposing an OpenAI-compatible interface externally, routing to different backends internally, and inserting guardrails and metering in between.

The priorities this developer listed are clear: streaming latency and failover come first and second, with guardrails and cost tracking close behind. This also matches the real constraints of customer-facing features—users are extremely sensitive to time-to-first-token and stuttering, while compliance and financial pressures rapidly amplify after launch.

How the Two Candidates Differ in Positioning

Neuraltrust TrustGate positions itself as an "AI security gateway," emphasizing prompt injection detection, sensitive data redaction, and policy enforcement—guardrails are its core selling point. TrueFoundry is more of an LLM operations platform, covering model deployment, routing, observability, and cost management, with the gateway being just one part of its capabilities.

This difference determines where to focus the evaluation: if guardrails are a hard requirement and need fine-grained policies, TrustGate offers a shorter path; if the team also needs deployment orchestration for self-hosted models, a unified metrics dashboard, and per-team billing, TrueFoundry has broader coverage. The overlap between the two is routing and failover; the divergence is in the depth of security policies and the overall integration of the platform.

Streaming Latency: Look at Time to First Token, Not Averages

Streaming response experience is determined jointly by time to first token (TTFT) and inter-token interval. The extra hop introduced by a gateway amplifies both metrics, so evaluation can't rely solely on vendor-claimed average latency—it must be measured on the real request path.

Suggested test method: use the same prompts to connect directly to the provider and to go through the gateway separately, record the P50 and P95 of TTFT, and observe inter-token interval stability under long responses. P95 exposes problems better than averages, because in customer-facing features, slow requests translate directly into churn. Also check whether the gateway buffers responses—some implementations wait for the complete response for content filtering, which utterly destroys the streaming experience.

TTFT (Time to First Token) refers to the time elapsed from the client sending a request to receiving the first token returned by the model, and is the core metric for measuring the interactive feel of streaming responses. Alongside it is Inter-Token Latency, the average time difference between each subsequent token's arrival, which determines the "smoothness" of the output process. Together they constitute the user-perceived streaming experience: long TTFT makes users feel "stuck with no response," while jittery token intervals make text output speed up and slow down erratically.

In a gateway scenario, TTFT consists of three segments: the network round trip from gateway to backend, the backend model's queuing and prefill time, and the gateway's own processing overhead (authentication, routing, guardrail checks). During evaluation, measure the TTFT difference between direct connection and going through the gateway separately—that difference is the true cost introduced by the gateway. P50 reflects typical experience, while P95 exposes long-tail problems—in customer-facing features, P95 often predicts user churn better than averages.

Failover: Verify Real Switching, Not Configuration Options

Both products claim to support multi-provider failover, but "supported" and "reliable under real traffic" are two different things. Key questions include: the health check probe frequency and decision thresholds, whether already-sent requests are replayed upon switching, how mid-stream failures are handled, and whether traffic automatically switches back after recovery.

During testing, you can artificially make one provider return 5xx or time out, and observe the gateway's behavior. Ideally, non-streaming requests should transparently retry to the backup backend; when streaming requests fail mid-way, at minimum a clear error should be returned rather than silent truncation. Also confirm whether failover is linked with cost tracking—when switching to a more expensive backup provider, billing attribution must not be lost.

Health Check is the trigger foundation for failover, typically divided into active probing (the gateway periodically sends lightweight requests to the backend) and passive determination (dynamically marking based on real requests' error rate and timeout rate). Too low a probe frequency causes delayed fault detection; too high adds backend load. Too loose a threshold causes false switches; too strict makes switching untimely.

Failover for streaming requests is far more complex than for non-streaming: once the response has begun transmitting tokens to the client, switching backends mid-way means the context of already-sent content may be lost. There are three common handling strategies—returning a clear error and terminating, resuming from the failure point (requires backend support), or silent truncation (the worst). Evaluation must confirm which strategy the product uses, because silent truncation leaves users with incomplete answers without any awareness. Additionally, the auto-switch-back after recovery logic also needs verification, otherwise traffic may linger on the backup backend long-term, driving up costs.

Guardrails: Prompt Injection and Personal Data

The actual effectiveness of prompt injection protection varies widely. During evaluation, prepare a set of targeted attack samples, including direct instruction override, indirect injection (through retrieved content or tool returns), and encoding bypass, and observe both interception rate and false positive rate. False positives matter equally: over-blocking harms legitimate business requests.

For personal data handling, confirm whether the gateway supports identifying and redacting sensitive fields before requests leave, and whether redaction can be configured down to field level. For customer-facing features, also confirm whether logs retain raw input—retention itself may be a compliance risk. TrustGate has a higher degree of productization in this area, while TrueFoundry may require combining with its policy layer for custom configuration.

Prompt Injection refers to attackers using carefully crafted input to induce the model to deviate from its original instructions, perform unauthorized actions, or leak system prompts. It falls into two categories: direct injection is when users directly override instructions in their input (e.g., "ignore all the above requirements"); indirect injection is when the attack payload is hidden in external content the model reads, such as retrieved documents, web pages, or tool return results. The latter is more covert because the user input itself looks completely normal.

When evaluating guardrails, attack samples should cover instruction override, role-play bypass, encoding obfuscation (Base64, Unicode variants), and multilingual bypass techniques. At the same time, the false positive rate must be measured: overly aggressive regexes or classifiers will misjudge legitimate business requests as attacks, directly harming usability. An ideal guardrail should strike a balance between interception rate and false positive rate, and support policy-based threshold adjustment.

Cost Tracking: Implementation Details for Per-Team Attribution

Finance cares about "who is spending on what," which requires the gateway to tag requests with team identifiers at the request level and price by model separately. Details to verify include: whether custom metadata passthrough is supported, whether the pricing table is maintainable (how to convert self-hosted model costs), and whether exports by team and time dimension are available.

An often-overlooked point is billing for caching and retries: requests that hit cache should not be billed repeatedly, and retries generated by failover should be attributed to the original request's team. During evaluation, you can simply run one day of test traffic from two teams and check whether the exported bill matches manual reconciliation.

Selection Recommendations

If the team's core pain point is security compliance and guardrail policies need to be deployed quickly, TrustGate is more focused; if the goal is to put multi-provider routing, self-hosted models, and cost governance into one platform, TrueFoundry's integration has the advantage. Whichever you choose, it's recommended to run a week of shadow testing with real traffic, focusing on P95 streaming latency, actual failover switching behavior, and billing attribution accuracy. Vendor documentation can answer "does it have it"; only real traffic can answer "is it stable."

FAQ

How much latency does a gateway add? It depends on deployment location and whether responses are buffered. Same-region deployment typically adds single-digit milliseconds, but content filtering that waits for complete responses significantly degrades the streaming experience.

How do self-hosted model costs get incorporated into tracking? Unit prices need to be converted by GPU hours or tokens and entered into the pricing table, otherwise per-team attribution will have gaps.

Does failover switch back automatically? Strategies differ across products; confirm the switch-back logic after recovery to avoid lingering on the backup backend and rising costs.
