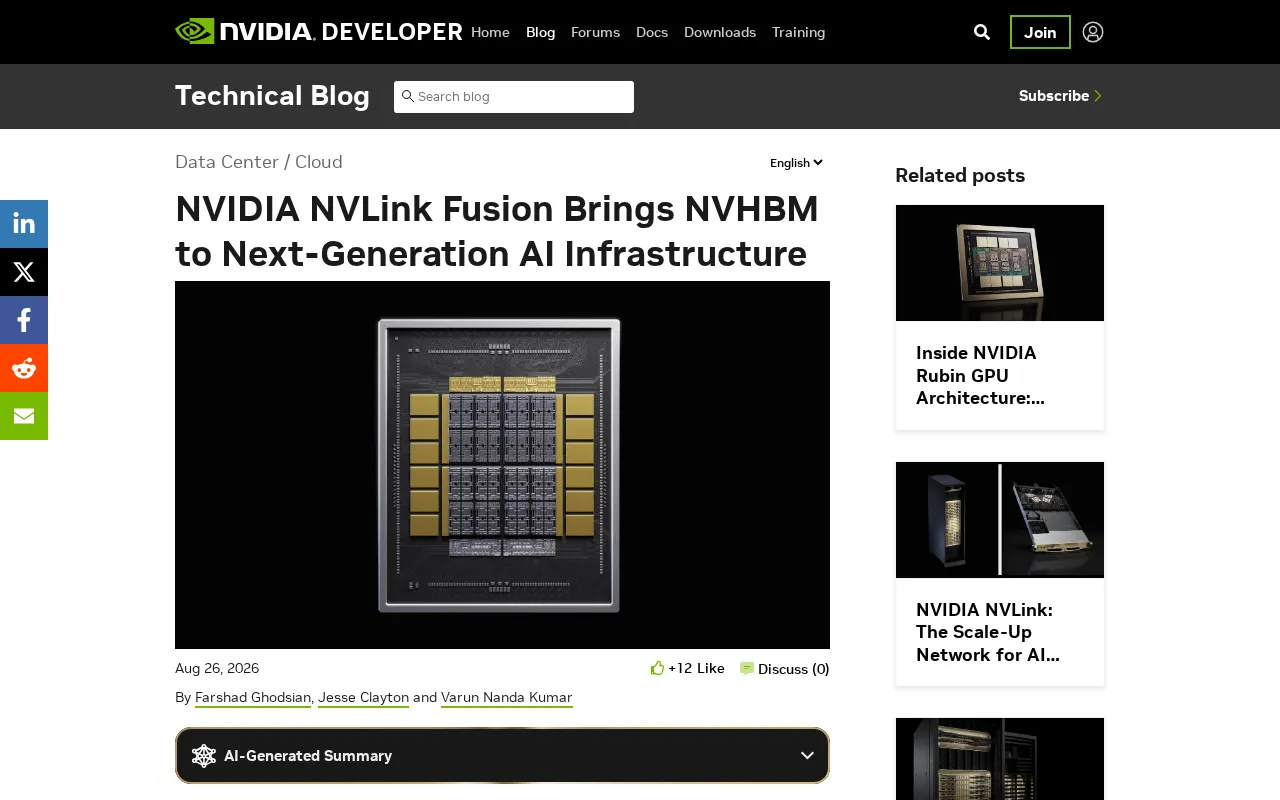

NVLink Fusion Integrates NVHBM: The Key Technology Breaking AI's Memory Wall
NVIDIA integrates NVHBM into NVLink Fusion to break the AI memory wall through memory pooling and unified interconnects.
As large-model inference demands on memory bandwidth and capacity surge, NVIDIA is integrating NVHBM (High Bandwidth Memory) into its NVLink Fusion architecture to fundamentally address the memory wall problem. Building on NVLink Fusion's openness to third-party chips, NVHBM adds memory pooling capabilities that let multiple compute units share high-bandwidth memory with low latency, breaking single-GPU HBM capacity limits and improving energy efficiency. This marks a shift in AI compute competition from chip-level performance to system-wide co-optimization of memory, interconnects, and architecture.
AI Factories' Insatiable Appetite for Compute
As large model sizes continue to balloon and inference tasks grow increasingly complex, AI infrastructure faces unprecedented challenges. Today's AI factories must not only support models with hundreds of billions — or even trillions — of parameters, but also handle demanding workloads like multi-step reasoning and long-context processing. Against this backdrop, simply scaling out by adding more GPUs is no longer sufficient. Memory bandwidth and interconnect capability are increasingly becoming the critical bottlenecks limiting compute utilization.
A significant technical development recently announced by NVIDIA — integrating NVHBM (NVIDIA High Bandwidth Memory) into the NVLink Fusion architecture — is designed specifically to address this challenge. This integration is seen as an important step in the evolution of next-generation AI infrastructure.
Breaking Down NVLink Fusion
From NVLink to NVLink Fusion
NVLink is NVIDIA's high-speed GPU interconnect technology, introduced in 2016 with the core goal of overcoming the bandwidth limitations of traditional PCIe buses, enabling multiple GPUs to communicate directly at extremely high speeds. As data center scales expanded, NVLink evolved to support rack-level and even cross-rack interconnect solutions.
NVLink Fusion represents a further opening and broadening of this technology. It allows a wider range of chips — including third-party custom CPUs and accelerators — to join NVIDIA's high-speed interconnect ecosystem via the NVLink protocol. For enterprises and cloud providers, this means greater architectural flexibility when building AI infrastructure, while still retaining the ultra-high bandwidth advantages of NVLink.
Why Bring NVHBM into NVLink Fusion?
HBM (High Bandwidth Memory) is standard equipment in today's AI accelerators. Through 3D stacking, memory chips are vertically layered in close proximity to the processor, achieving bandwidth that far exceeds traditional DDR memory thanks to the extremely short physical distance. NVHBM, as NVIDIA's optimized and integrated high-bandwidth memory solution, combined with NVLink Fusion, fundamentally brings two critical resources — memory bandwidth and interconnect bandwidth — into a single, co-optimized framework.
The AI Memory Wall Problem and How NVHBM Addresses It
Memory Bottlenecks in AI Inference
The center of gravity in AI computing is shifting from training toward large-scale inference. In inference scenarios — especially when handling long contexts, multi-turn conversations, and complex reasoning chains — models must frequently read and write large volumes of intermediate state (such as KV Cache). These operations place extreme demands on both memory capacity and bandwidth.
The industry commonly refers to this phenomenon as the "Memory Wall" — compute performance is growing far faster than memory bandwidth, leaving processors waiting on data transfers and unable to fully utilize their computational capabilities.
Three Key Benefits of NVHBM + NVLink Fusion
Integrating NVHBM into the NVLink Fusion architecture delivers direct benefits by enabling high-bandwidth memory resources to be efficiently shared and accessed across a broader scope:
- Unified memory view: Multiple compute units can access each other's high-bandwidth memory with lower latency via NVLink Fusion's high-speed interconnect, significantly reducing redundant data movement.
- Breaking single-GPU HBM capacity limits: For very large models, a single GPU's HBM often can't hold the complete model or its state. The fused architecture enables memory resource pooling.
- Improved overall energy efficiency: Data movement is a major contributor to data center power consumption. Shortening data transfer paths and improving bandwidth utilization helps reduce power consumption per unit of compute.
Broader Implications for Next-Generation AI Infrastructure
A Paradigm Shift Toward Rack-Scale Computing
NVIDIA has repeatedly emphasized the vision of "treating the entire data center as a single computer." From the launch of rack-scale systems like the GB200 NVL72 to the opening up of NVLink Fusion, everything points in the same direction: the fundamental design unit of AI infrastructure is expanding from individual chips and servers to entire racks and clusters.
Bringing NVHBM into this framework means memory is no longer an isolated resource bound to a single accelerator, but a shared pool that can be collectively managed at the rack level. This lays a solid hardware foundation for building larger-scale, higher-efficiency AI factories.
The Convergence of Open Ecosystems and Heterogeneous Computing
One of NVLink Fusion's defining characteristics is its openness, allowing partners to connect custom chips. As more cloud providers and large enterprises begin designing their own specialized accelerators, enabling these heterogeneous chips to work together efficiently has become a shared industry challenge.
The integration of NVHBM with NVLink Fusion offers a viable path toward unified high-bandwidth memory and interconnect in heterogeneous computing environments, and is likely to further reinforce NVIDIA's ecosystem dominance in AI infrastructure.
The Compute Race Enters a System-Level Competition
The fusion of NVHBM and NVLink Fusion reflects a broader shift: AI hardware competition has moved beyond raw chip performance to comprehensive co-optimization across memory, interconnects, and system architecture. As model sizes and inference complexity continue to climb, whoever can achieve breakthroughs in memory bandwidth and data movement efficiency first will hold the advantage in the next phase of AI infrastructure competition.
For developers and enterprises, the core takeaway is this: the performance ceiling of future AI systems increasingly depends on the collaborative capability of the overall architecture, not any single hardware metric. NVIDIA's strategic move to bring NVHBM into NVLink Fusion points to a direction worth watching closely as the next generation of AI factories takes shape.
