Production-Grade Search Ranking System Design: A Complete Breakdown from Architecture to Multi-Stage Ranking

Introduction: Search Systems Are Far More Than "Keyword Matching"

When most people think of "search," they picture a text box and a list of keyword-matched results. But in real production environments, a search and ranking system powering an e-commerce platform, content platform, or recommendation engine is a complex engineering system made up of tightly coupled stages.

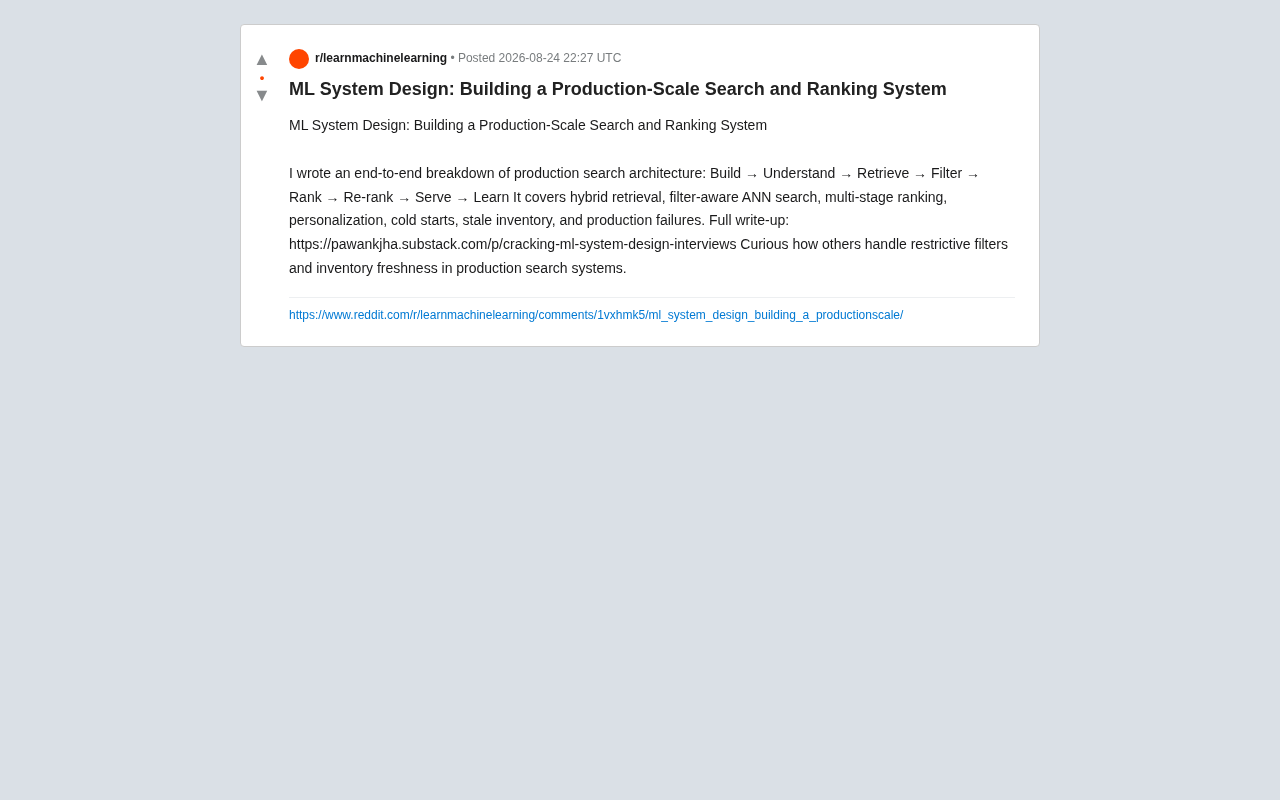

Engineer Pawan Jha published a technical deep-dive covering an end-to-end breakdown of production-grade search and ranking systems, tracing the complete pipeline from build to continuous learning. This article builds on that material to explore the core architecture and key challenges of production search systems.

The Complete Search Pipeline: From Build to Learn

A production search architecture can be summarized as a clear processing chain:

Build → Understand → Retrieve → Filter → Rank → Re-rank → Serve → Learn

Each of these eight stages serves a distinct purpose, forming a complete closed-loop system. Understanding this chain is the foundation for designing any large-scale search and ranking system.

Understand: Decoding User Search Intent

The first step in search isn't retrieval — it's understanding. Queries entered by users are often vague, short, or contain spelling errors. The system must transform raw text into a structured, machine-readable representation through query parsing, intent recognition, entity extraction, and semantic vectorization.

The quality of this layer sets the ceiling for every subsequent stage. If intent is misunderstood, even the most powerful ranking model is just optimizing over the wrong candidate set.

Retrieve: Hybrid Retrieval Is the Only Practical Choice

Production systems place strong emphasis on hybrid retrieval. Traditional inverted indexes (keyword-based retrieval) excel at exact matching but can't understand semantics. Dense vector retrieval (ANN, or Approximate Nearest Neighbor search) captures semantic similarity well but can fall short in exact-match scenarios.

The production answer is to combine both:

• Use keyword retrieval to ensure precision
• Use vector retrieval to expand semantic recall
• Merge the two result sets with a fusion strategy

This hybrid retrieval approach has become the de facto standard in modern search engines.

The fusion strategy for combining two result sets is itself a non-trivial problem. Common approaches include RRF (Reciprocal Rank Fusion), which combines results from both keyword and vector retrieval by summing the reciprocal ranks — no score normalization required, making it simple and robust. Another approach is linear weighted fusion, which assigns different weights to the similarity scores from each channel and sums them directly, though this requires the score distributions of both channels to be comparable (otherwise additional score alignment is needed). Some systems also use a cascaded approach — first using keyword retrieval to dramatically narrow the candidate pool, then applying vector retrieval for re-ranking — to control the scale and latency of vector computation.

Filter-Aware ANN Search: One of the Core Hard Problems

In search and ranking systems, filter-aware ANN search is widely recognized as a notoriously tricky problem.

Why Filtering Is So Difficult

In e-commerce search, users frequently apply heavy filtering constraints: price range, brand, size, inventory status, shipping availability, and more. The issue is that ANN indexes are optimized for unfiltered similarity search. Once strict filter conditions are layered on top, you face a dilemma:

• Post-filtering: Retrieve the Top-K most similar results first, then apply the filter. If the filter is extremely strict, the K results may have almost nothing left after filtering, leading to poor recall.
• Pre-filtering: First narrow down to the subset that satisfies the filter conditions, then run similarity search within that subset. This can break the index structure, causing retrieval efficiency to degrade significantly.

This remains an unsolved engineering problem with no silver bullet. Common practical compromises include:

1. Partitioned indexes
2. Joint optimization of filter conditions and index structures
3. Dynamically adjusting the retrieval K value

HNSW (Hierarchical Navigable Small World) is currently one of the most widely used ANN index structures in production. Its graph-based hierarchical structure achieves logarithmic retrieval complexity. However, HNSW graphs are pre-built on the full dataset — once a filter compresses the candidate set to a tiny fraction (say, less than 1%), the navigation paths in the graph can degrade as large numbers of nodes are skipped, significantly reducing retrieval quality. To address this, some systems have explored filtered HNSW variants that dynamically skip nodes not satisfying filter conditions during graph traversal. Another class of solutions leverages hybrid structures combining inverted indexes with vector indexes (such as Weaviate and Milvus's hybrid filtering implementations), which maintain attribute filter information at the index level to support efficient conditional retrieval without breaking the graph structure.

Multi-Stage Ranking: Balancing Efficiency and Precision

Once a candidate set is retrieved, the system enters the ranking stage. Production systems universally adopt a multi-stage ranking design.

Why Use Multiple Ranking Stages

No single model can simultaneously satisfy both "fast" and "accurate" requirements. Multi-stage ranking uses a funnel-shaped progressive refinement to balance efficiency and effectiveness:

• Coarse ranking (Ranking): Faced with thousands of candidates, use a lightweight model to quickly score and reduce the candidate set to a few hundred.
• Fine ranking (Re-rank): Apply a complex deep model to the smaller candidate set for fine-grained reordering, fully leveraging user features, contextual features, and cross features.

This layered design allows the system to meet millisecond-level latency constraints while ensuring broad coverage and high precision in top results.

Real-World Challenges in Production

Beyond architecture design itself, real production systems face several unavoidable challenges — and these are precisely where theory and practice diverge.

Personalization and the Cold Start Problem

Personalization is key to improving the search experience, but it inherently faces the cold start problem. For brand-new users, the system has no historical behavioral data — so how do you deliver reasonable personalized rankings?

Common strategies include:

• Default ranking policies based on demographic profiles
• Real-time signals derived from the current session
• Balancing Exploration & Exploitation

Stale Inventory

Stale inventory is a persistent headache in e-commerce search. Products may be sold out or delisted, but the index hasn't been updated yet, causing users to find items they can't actually buy. This requires careful trade-offs between index update freshness, system throughput, and cost.

Graceful Degradation for Production Failures

A robust search system must account for degradation strategies: when a specific component (such as the personalization service or vector search) becomes unavailable, the system should gracefully fall back to basic retrieval rather than failing entirely. This fault-tolerant design is a fundamental requirement of any production-grade system.

Continuous Learning: The Search System's Evolution Engine

The final stage of the pipeline — Learn — loops back to the beginning. The system continuously optimizes ranking models and retrieval strategies by collecting user behavioral feedback: clicks, dwell time, purchases, and more.

This data flywheel is the engine that drives a search system's evolution, and it's the core distinction between a one-time project and a long-lived, continuously improving system.

There is one classic trap in continuous learning worth flagging: Position Bias. User click behavior naturally favors results ranked higher on the page. If click data is used directly as positive training samples, it creates a self-reinforcing loop: "ranked higher → more clicks → model reinforces high ranking," making it increasingly difficult for the system to surface genuinely high-quality content that initially ranked lower. The industry typically corrects for this through Inverse Propensity Weighting (IPW) or by inserting randomly positioned results in online experiments, ensuring that training signals reflect true content quality rather than position effects.

Conclusion

This design framework for production-grade search and ranking systems clearly outlines every dimension a complete system needs to address. Its value lies not in providing definitive answers to every problem — filter-aware retrieval and inventory freshness remain open challenges to this day — but in offering a systematic way of thinking.

For engineers preparing for ML system design interviews, or teams actively building search systems, the Build → Understand → Retrieve → Filter → Rank → Re-rank → Serve → Learn pipeline is an architectural map worth revisiting again and again. True engineering wisdom is often found precisely in those trade-offs that have no perfect answer.
