Repurposing a Broken Dell Monitor into a Desk Lamp: A DIY Hardware Upcycling Project

From E-Waste to a Functional Desk Lamp

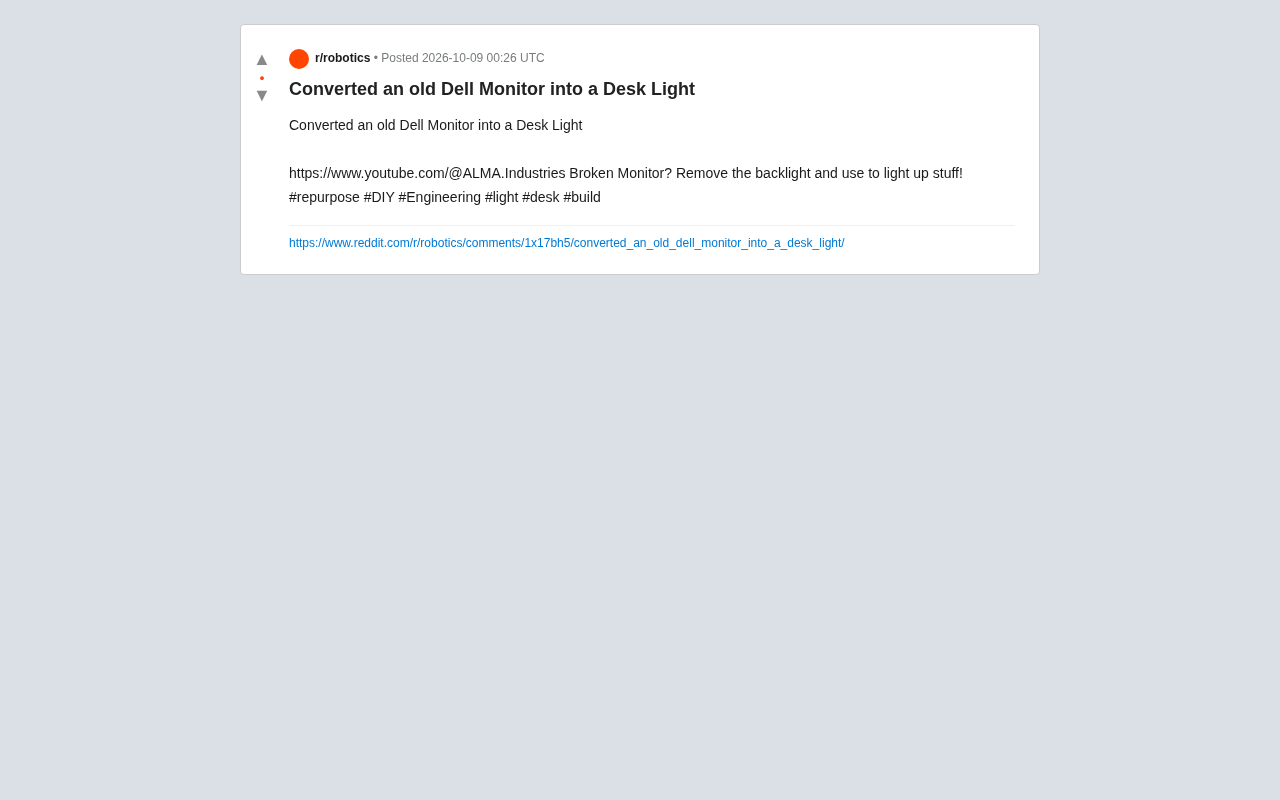

A broken monitor usually meets one of two fates: shoved into a storage closet to collect dust, or tossed into the e-waste bin. But a creator focused on DIY and engineering projects (YouTube channel ALMA.Industries) found a third option — dismantling an old Dell monitor and repurposing its internal backlight module into a desktop lamp.

The project itself isn't particularly complex, but it highlights a fact most people overlook: modern LCD monitors contain a remarkably complete and uniform lighting system hidden inside. When the panel itself fails due to aging or physical damage, that backlight system is often still perfectly functional. Rather than scrapping the whole unit, you can give it a second life as a ready-made flat light source.

The Backlight Module: An Underrated Lighting Asset Inside Your Monitor

Why the Backlight Can Work Independently

LCDs don't produce light on their own — they rely on a backlight layer behind them, with the liquid crystal panel only controlling how much light passes through each pixel. This means a monitor contains two relatively independent subsystems: the liquid crystal panel responsible for image formation, and the backlight module responsible for producing light.

When a monitor develops display issues — such as a damaged liquid crystal layer, a failed driver board, or a cracked screen — the backlight can usually still illuminate normally. That's exactly the logic behind this build: strip away the now-useless liquid crystal panel and diffusion layers, then re-power the backlight LED strips to get a large, bright, and evenly lit flat light source.

Modern LCD backlight modules come in two main technologies: the older CCFL (Cold Cathode Fluorescent Lamp) and today's mainstream LED backlights. CCFL backlights require a high-voltage inverter board to drive them, with voltages reaching several hundred volts — making modifications riskier and less common in the secondhand market. LED backlights, by contrast, are powered by a constant-current LED driver board and typically operate between 12V and 48V, making them safer and more manageable to work with. You can tell which type your monitor uses by checking the manufacture date on the label — monitors made around 2010 and later have almost universally switched to LED backlights. When choosing a candidate for this project, prioritize LED-backlit models: they're simpler to work with and easier to source compatible replacement drivers for.

Uniform Light Output Is Its Key Advantage

Unlike ordinary LED bulbs or light strips, a monitor's backlight passes through the manufacturer's light guide plate and diffusion layers, resulting in extremely even light distribution with virtually no harsh point-source glare. This makes it particularly well-suited for desktop fill lighting, photography fill light, or workbench illumination — effectively reducing localized glare and shadows.

The Basic Modification Process and Safety Considerations

Based on the original project, the build can be broken down into a few key steps. It's worth emphasizing that disassembling a monitor carries real electrical safety risks and is not recommended for those without any prior experience.

• Disassemble the housing and panel: Remove the monitor's outer casing, take out the damaged liquid crystal panel, and retain the internal backlight LED module along with its light guide structure.
• Handle the power supply: Monitor backlights are typically powered by dedicated constant-current driver circuits. For the conversion, you'll need to match an appropriate driver to the LED strips — you can't simply hook them up to a generic voltage supply.
• Safety and insulation: Capacitors on the power board may retain residual charge. Always disconnect power and allow it to discharge before disassembly, and properly insulate any exposed circuitry.
• Aesthetics and mounting: Repackage the retained backlight layer into a stand or enclosure to create a lamp that can sit on a desk.

The power supply is the most commonly underestimated challenge. Backlight voltage and current specs vary significantly across monitor models, and blindly applying power can burn out the LEDs or even cause a safety hazard — making this the aspect of the project that demands the most care.

The Real Value of This Kind of Build

Setting aside the showmanship, the real significance of this project lies in its "make the most of what you have" engineering mindset. Electronics are becoming obsolete faster than ever, yet countless components inside them still have usable life left. Repurposing a broken monitor's backlight reduces one piece of e-waste while saving the cost of buying a new light fixture.

For hands-on engineering enthusiasts, builds like this are also a great opportunity to understand hardware architecture. Taking something apart yourself gives you an intuitive feel for an LCD monitor's layered structure, backlight drive principles, and power management — knowledge that's far more valuable than simply watching a teardown video.

Summary

Converting a broken Dell monitor into a desk lamp is a low-barrier, high-reward DIY project. The core insight is recognizing the still-functional backlight asset inside the monitor, then giving it a new purpose through appropriate power supply matching and structural reassembly. For users who value sustainability and enjoy hands-on work, this is a compelling upcycling example worth following. That said, electrical safety should always come first in any actual implementation.

Background Notes

Monitor backlight LED strips are not simple parallel loads — they consist of multiple LED strings wired in series, requiring a constant-current source rather than a constant-voltage source. The fundamental principle of constant-current drive is: regardless of how the load resistance changes, the current flowing through the LEDs remains constant, ensuring stable brightness and preventing thermal runaway (an LED's forward voltage drops as temperature rises; with a constant-voltage supply, current would keep climbing until the LEDs burn out). The two most common solutions for this modification are: first, reusing the monitor's original backlight driver board by simulating a normal startup signal (such as pulling the backlight enable pin EN high) to get it running; second, purchasing a generic constant-current LED driver module and matching it to the LED strip's series count and per-string current rating. The first approach costs almost nothing but requires identifying the motherboard interface timing; the second is more flexible and suits modders with basic hands-on electronics skills.
