Robot Dog on Rubble Pushes IMU to Its Limits: Why Balance Algorithms Fail on Loose Ground

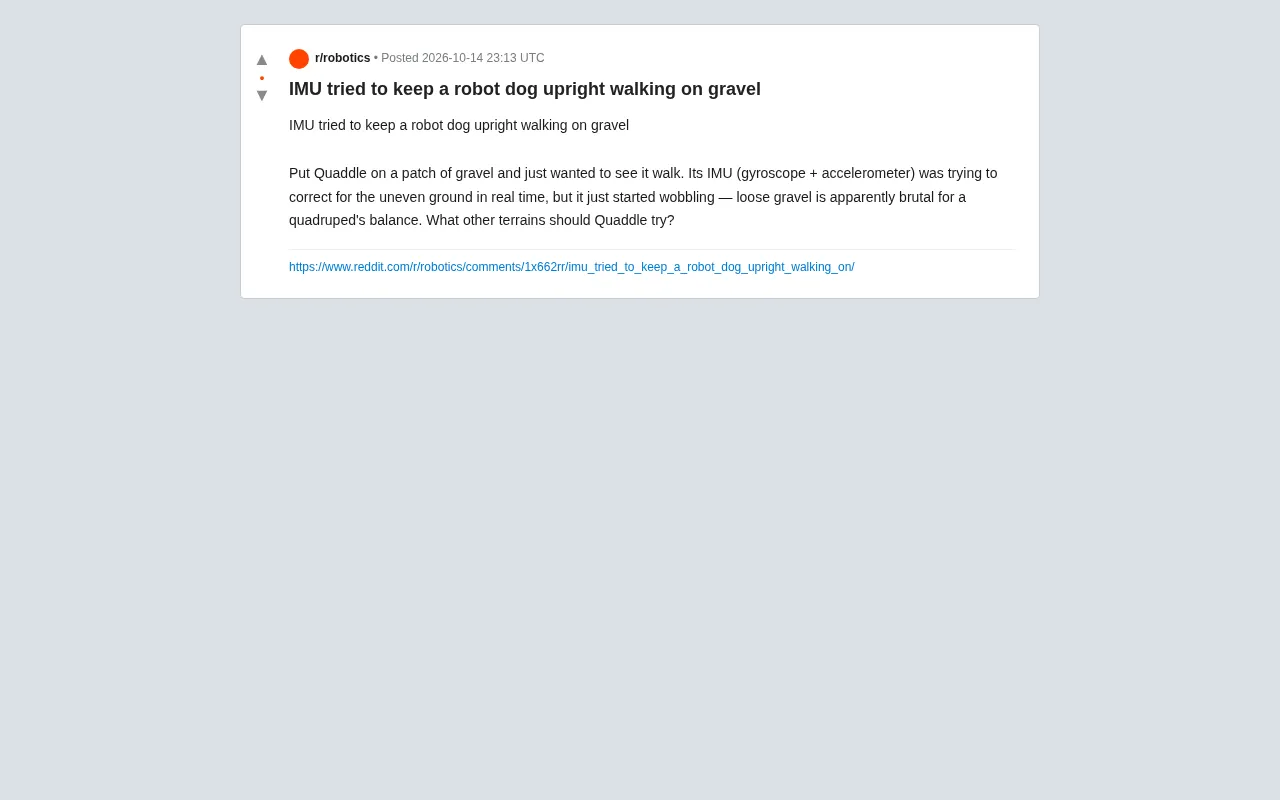

A quadruped robot was placed on a field of rubble and attempted to walk by using an IMU (gyroscope + accelerometer) to correct its posture in real time — but it ended up wobbling unsteadily. This test record from reddit exposes a classic challenge for quadruped robots on unstructured terrain: the pressure that loose rubble places on a balance system is far greater than it appears.

What the IMU Is Actually Doing, and Why Rubble Makes It "Fail"

The IMU is one of the core sensors that keeps a quadruped robot's posture stable. It consists of a gyroscope and an accelerometer — the former measures angular velocity, the latter measures linear acceleration, and by fusing the two, the robot can estimate the tilt angle and motion trend of its torso. When the robot steps onto uneven ground, the controller rapidly adjusts the torque output of each joint based on IMU data, attempting to "pull" the body back to level.

On hard, fixed-shape ground, this logic works well. But rubble is a completely different physical environment. Each stone is an independent, movable individual — when the robot's foot lands, stones roll, collapse, and rearrange. This means the support surface beneath the robot's feet changes constantly at the millisecond level. The disturbances detected by the IMU have high frequency, large amplitude, and many of them originate from the ground itself rather than from the robot's own posture deviation.

The gyroscope and accelerometer within an IMU are complementary in principle, but each has clear drawbacks. The gyroscope calculates angle by integrating angular velocity — accurate over short periods, but it accumulates drift error over time. The accelerometer provides an absolute reference for the direction of gravity, but during robot motion it mixes motion acceleration into the gravity measurement, producing instantaneous noise. Therefore, in engineering practice, complementary filtering or Kalman filtering is typically used to fuse the two, using the accelerometer's low-frequency information to correct the gyroscope's high-frequency integration drift. It is worth noting that the IMU provides the posture of the robot's torso in inertial space, not the contact state between the foot and the ground. When rubble causes the support surface to change rapidly, the IMU readings mix true posture deviation with high-frequency vibration from ground impacts. If the state estimator cannot effectively distinguish between the two, the confidence of posture estimation drops significantly.

The Real Difficulty of Loose Terrain: Mismatch Between Perception and Execution

The challenge that rubble ground poses to quadruped robots is essentially a mismatch between perception and execution.

The IMU measures the body's motion state — it has no idea that the stones beneath the feet are sliding. When the IMU detects torso tilt and issues correction commands, the foot may already be standing on a rolling stone, and the torque output may actually accelerate the stone's displacement, forming a negative feedback loop. This is also why the robot dog in the test "wobbles more the more it corrects" — the correction action itself may generate new disturbances on loose ground.

Another factor is response bandwidth. Although the IMU's sampling rate is high, there is latency throughout the entire chain — from detecting deviation, calculating correction amounts, to joints executing in position. On hard ground this latency is negligible, but on rubble, the rate of change of the ground state may already exceed the response speed of the control loop.

IMU Alone Is Not Enough: Quadruped Balance Needs More Perception Dimensions

This test also indirectly demonstrates that although the IMU is the foundation of posture control, it alone is not sufficient to handle complex terrain.

The more mature approach in the industry is to fuse multiple sensors: foot-end force sensors can sense whether the foot has made solid contact and whether it is slipping; vision or LiDAR can identify the traversability of terrain ahead; joint current feedback can indirectly determine load conditions. By feeding this information together with IMU data into a state estimator, the robot can distinguish between "the torso is tilted" and "the ground is moving."

For terrain like loose rubble, some research is also exploring "compliant control" strategies — not forcibly resisting ground disturbances, but allowing the body to moderately follow terrain oscillations, reducing reliance on high-frequency corrections. This is fundamentally different from the rigid balance approach.

The state estimator is the core module of multi-sensor fusion. Its task is to infer the robot's current true state from noisy multi-sensor readings, including torso posture, velocity, foot-end contact state, etc. Commonly used methods include the Extended Kalman Filter (EKF) and factor graph optimization. Take foot-end contact state as an example: when the foot-end force sensor reading suddenly drops while joint positions show abnormal changes, the state estimator can infer that "the foot is slipping" rather than "the torso is tilting," thereby avoiding issuing incorrect posture correction commands. Vision and LiDAR provide feedforward information — predicting whether a region is stable before the foot lands, transforming passive response into active planning. This approach of combining proprioception with exteroception is currently the mainstream technical route for quadruped robots to maintain stability on complex terrain.

After Rubble, What Other Terrains Are Worth Testing

The original poster asked at the end: what other terrains should this robot dog be tested on? From common test scenarios in quadruped robot research, several directions are worth attention.

Sand is the "upgraded version" of rubble — finer particles, stronger flowability, more pronounced foot sinking. Muddy or wet slippery grass introduces the variable of changing friction coefficients. Slopes combined with rubble test both posture control and grip simultaneously. Stairs and steps are classic structured obstacles, testing discrete foot placement capability. And dynamic obstacles — such as a kicked ball or moving objects — test real-time reaction and prediction capabilities.

Each terrain places different demands on perception and control, and a single test can hardly demonstrate a robot's comprehensive capabilities. The value of the rubble test is that it introduces the variable of "the ground itself moves" into the balance problem — a challenge that can never be encountered on hard ground.

The core idea of compliant control is to make the robot's joints exhibit spring-damper-like compliance characteristics rather than rigid position control. Under traditional rigid control, the controller will push joints to target angles at all costs, which on loose ground actually kicks stones away and exacerbates sliding. Compliant control allows joints to deviate moderately under external forces, regulating the interaction force between the robot and the environment through impedance control or admittance control. This strategy has practical applications in the legged robotics field — for example, the MIT Cheetah series and ANYmal both adopt different forms of compliant control to handle uncertain terrain. The cost is reduced posture precision, but it gains higher robustness and energy efficiency, often proving more effective than pursuing rigid balance in unstructured environments like rubble and sand.

Background Supplement

The "bandwidth" in control theory refers to the range of disturbance frequencies that a system can effectively respond to. When the disturbance frequency approaches or exceeds the upper limit of the control loop's bandwidth, the system not only fails to suppress the disturbance but may also produce resonant amplification due to phase lag. The entire control chain of a quadruped robot — from IMU sampling, state estimation, gait planning, inverse kinematics solving, to motor driver execution — typically has a total latency on the order of a few milliseconds to tens of milliseconds. The collapse and rolling produced when rubble is stepped on can have disturbance frequencies reaching tens of hertz, falling right at or even beyond the edge of many legged robots' control bandwidth. This is also why increasing computation speed or sampling rate does not always solve the problem — the real bottleneck often lies in the physical inertia of the mechanical execution stage.
