ros2_pulse: Zero-Intrusion, Low-Overhead Monitoring for ROS 2 Topic Frequency and Node Liveness

The Problem Every ROS 2 Engineer Faces

In robotics development, one seemingly simple question continues to haunt engineers: Is every topic flowing at its expected frequency? Is every node still alive? When you're running a full planner stack on a Jetson Orin, this question becomes critically important — any topic frequency anomaly could signal a lurking system-wide problem.

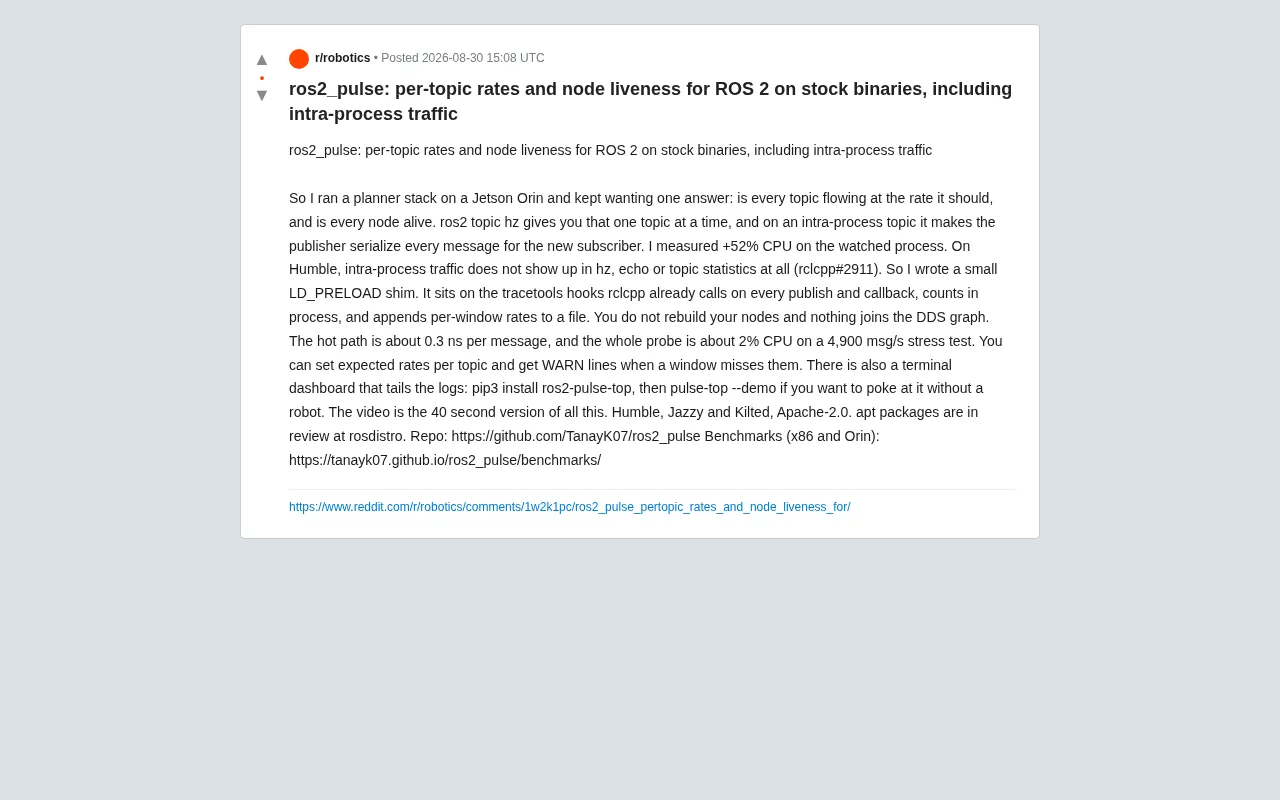

Recently, developer TanayK07 open-sourced a tool on Reddit called ros2_pulse, designed specifically to address the pain points of topic frequency monitoring and node liveness detection in the ROS 2 ecosystem. Its standout feature: no recompilation of nodes required, no joining the DDS graph, and extremely low overhead.

The Pain Points of Existing ROS 2 Monitoring Tools

Any experienced ROS 2 developer knows that the official ros2 topic hz command can display the publish frequency of a single topic. But it has two critical shortcomings.

Only One Topic at a Time

ros2 topic hz is designed to inspect topics one at a time. When you need to simultaneously monitor dozens of topics across an entire planner stack, this approach falls flat. You can't tell at a glance which topic is dropping frames or which node has gone silent.

High Overhead from Intra-Process Communication

The more serious issue involves intra-process communication. When you run hz on an intra-process topic, the publisher is forced to serialize every message in order to serve data to this new subscriber. The author measured this to cause a 52% spike in CPU usage on the monitored process.

On resource-constrained embedded platforms like the Jetson Orin, this is simply unacceptable — the monitoring tool itself becomes the system bottleneck.

The author also highlights a known bug in the Humble release (tracked as rclcpp#2911): on Humble, intra-process traffic simply doesn't appear in hz, echo, or topic statistics. For high-performance nodes that rely heavily on intra-process communication for optimization, developers are essentially flying blind.

The Core Technical Approach Behind ros2_pulse

Rather than retrofitting existing tools, the author took a clever low-level interception approach.

tracetools Hook Injection via LD_PRELOAD

The heart of ros2_pulse is a small LD_PRELOAD shim. It attaches to the tracetools hooks that rclcpp already calls on every publish and callback, counting events in-process and appending per-window frequency data to a file.

This design delivers several key advantages:

• No node recompilation needed: Injected directly via LD_PRELOAD, it works with stock binaries out of the box;
• Never joins the DDS graph: The probe operates entirely in-process and never becomes an additional subscriber like hz does, eliminating serialization overhead at the root;
• Full coverage of intra-process traffic: By hooking at the tracetools layer, intra-process communication is captured completely, closing the monitoring blind spot present in Humble.

Exceptional Low-Overhead Performance

The performance numbers are ros2_pulse's most compelling selling point. The author's benchmark results show:

• Hot path overhead is approximately 0.3 nanoseconds per message;
• Under a stress test of 4,900 msg/s, total probe CPU usage is around 2%.

Compared to the +52% CPU increase from ros2 topic hz, 2% total overhead is nearly negligible. The author also provides complete benchmark reports on both x86 and Orin platforms.

Practical Features and Quick Start

ros2_pulse is more than just a data collector — it includes features designed for real-world usage scenarios.

Expected Frequency Alerting

You can define an expected frequency for each topic. When the actual frequency within a time window falls below the threshold, the tool emits a WARN-level log. This lets developers proactively define a "health contract" rather than passively staring at numbers trying to make sense of them.

For latency-sensitive applications like autonomous driving or robot navigation, this frequency-contract mechanism helps quickly pinpoint the source of performance degradation.

Real-Time Terminal Dashboard

The project also includes a terminal dashboard that live-tails the log file and displays the status of each topic at a glance. Getting started is straightforward:

pip3 install ros2-pulse-top
pulse-top --demo

Even without a real robot on hand, the --demo mode lets you experience the dashboard immediately, significantly lowering the barrier to entry.

Supported ROS 2 Distributions and License

ros2_pulse supports Humble, Jazzy, and Kilted ROS 2 distributions and is released under the Apache-2.0 license. The associated apt packages are currently under review in rosdistro, with official channel installation expected in the future.

Why ros2_pulse Is Worth Your Attention

From an engineering standpoint, ros2_pulse exemplifies an excellent problem-solving mindset: rather than competing head-on with existing tools, it goes deeper to find a more elegant entry point.

By leveraging the tracetools hook mechanism — natively called by rclcpp — the author sidesteps the serialization overhead of the DDS layer, achieving monitoring that is zero-intrusion, low-overhead, and comprehensive in coverage. This is especially valuable for robotic systems running on compute-constrained embedded platforms — after all, monitoring tools themselves should never become the system bottleneck.

For teams developing ROS 2 applications, especially those debugging complex node stacks or relying on intra-process communication for optimization, ros2_pulse provides an observability dimension that was previously missing. The project is open source on GitHub (TanayK07/ros2_pulse) and is well worth a try.
