A Beginner's Guide to Porcelain Insulator Collecting: Exploring a Niche World of Industrial Heritage

Starting with Those Porcelain Lumps on Power Poles

Electricity has long been a taken-for-granted part of modern life, but few people ever notice the small porcelain components mounted on power poles and high-voltage towers, quietly supporting transmission lines — porcelain insulators. They may seem ordinary, but they carry over a century of industrial history and have even given rise to a unique community of collectors.

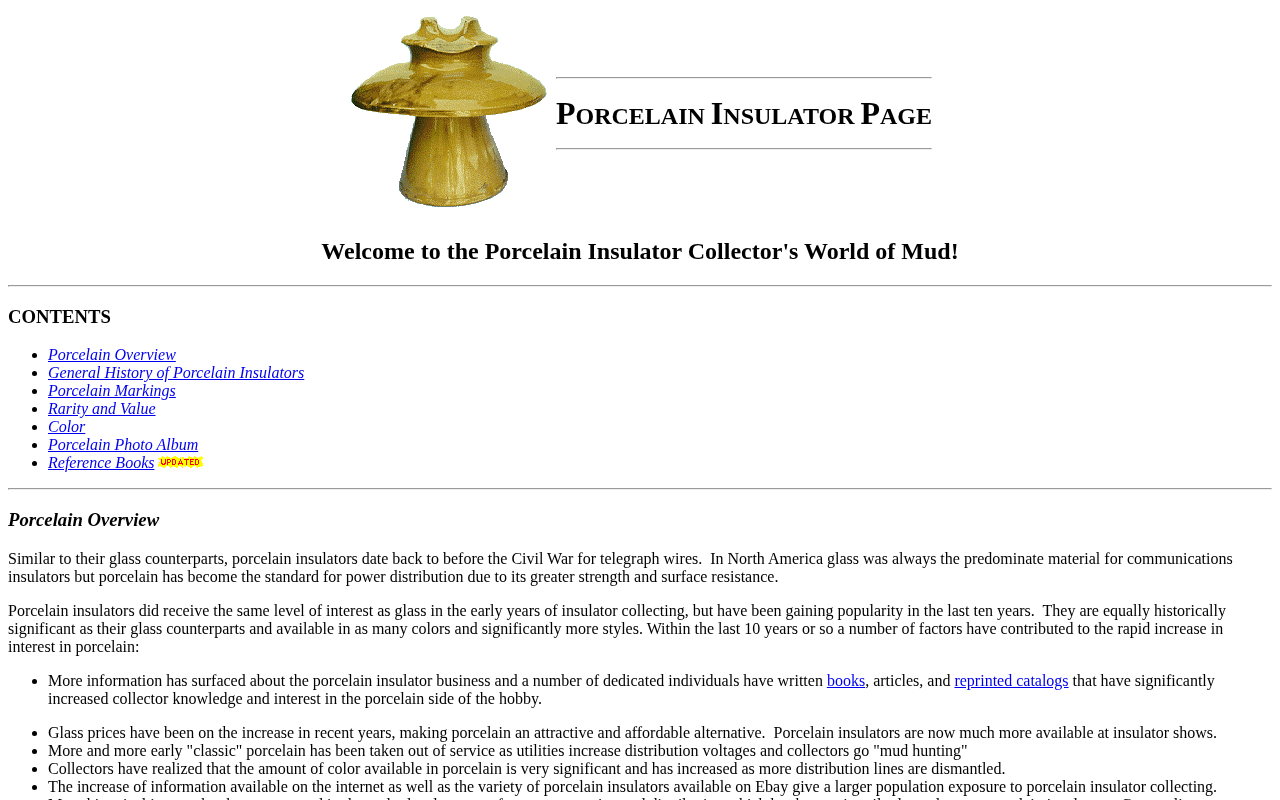

An article titled Welcome to the Porcelain Insulator Collector's World of Mud sparked a discussion on Hacker News. Hacker News was founded in 2007 by Y Combinator, Silicon Valley's renowned startup accelerator, and is known for its distinctive voting algorithm and high-quality discussions. Its user base includes many people with a deep passion for vintage technology, industrial heritage, and obscure knowledge domains — a cultural atmosphere that allows an article about ceramic insulators to gain traction on a front page otherwise dominated by AI and cryptocurrency topics. While it's not a typical tech hot topic, it reveals the little-known world of industrial heritage collecting.

What Are Porcelain Insulators: The Unsung Heroes of the Power Grid

Insulators are critical components in electrical power transmission systems. Their core function is to isolate live conductors from supporting structures (such as power poles and towers), preventing current leakage to grounded structures, ensuring safe power transmission, and reducing energy loss.

Insulators work based on the dielectric properties of their materials. When high-voltage current flows through a conductor, direct contact with a metal support structure would create a ground loop and cause a short circuit. Insulators block this path through their high-resistivity materials (ceramic volume resistivity can reach 10¹²–10¹⁴ Ω·cm). In the early days of the electrical industry — especially from the late 19th century to the early 20th century — glass and porcelain were the primary materials for manufacturing insulators. Porcelain insulators were widely used in telegraph, telephone, and power transmission and distribution lines due to their excellent electrical insulation properties, heat resistance, corrosion resistance, and high mechanical strength.

The modern power system is a complex hierarchical network: electricity generated at power plants is first stepped up at substations to ultra-high voltage (220kV–1000kV) for long-distance transmission to minimize line losses. It then passes through multiple levels of step-down substations, progressively reducing to high, medium, and low voltage before reaching end users. Each voltage level requires insulators of corresponding specifications: the disc-type porcelain insulator strings used on ultra-high-voltage lines may consist of dozens of individual units with a total length exceeding 10 meters, while low-voltage lines in residential areas use simple pin-type or spool-type insulators. Insulator failure can lead to severe consequences — contamination flashover, lightning-induced flashover, or mechanical fracture can all trigger widespread power outages.

Where Does the "World of Mud" Come From?

The phrase "World of Mud" in the article's title is a richly evocative metaphor. On one hand, ceramics are literally made from clay (a type of mud) fired at high temperatures — a direct reference to the material's origins. On the other hand, it also hints at the "down-to-earth" nature of this collecting hobby — collectors often have to "dig" for these forgotten industrial relics along abandoned lines, old power facilities, and even open fields.

How Insulator Collecting Culture Emerged

A Niche but Passionate Community

Insulator collecting has a history spanning several decades in Europe and North America, where a relatively mature collecting culture has developed. Enthusiasts classify and appraise insulators based on material, color, shape, manufacturer markings, production era, and rarity.

For collectors, each insulator is a tangible witness to industrial history:

• Design variations: Insulators from different eras and manufacturers show significant differences in design and craftsmanship. Early telegraph systems used simple pin-type insulators, and as voltage levels increased (from an initial few kilovolts to the modern ultra-high voltage of 1000kV), insulators evolved into suspension, post, and bushing types, among others
• Rare models: Some early or limited-production models are extremely scarce and highly valuable to collectors
• Material preferences: Glass insulators are especially sought after for their transparent, colorful appearance, while porcelain insulators attract a different group of enthusiasts with their substantial industrial aesthetic and historical depth. Manufacturing porcelain insulators requires precise control of sintering temperature (typically 1200–1400°C), and the proportions of feldspar, quartz, and kaolin in the formula directly affect mechanical strength and electrical performance

Why Would Anyone Be Obsessed with Collecting Insulators?

From a broader perspective, insulator collecting reflects humanity's appreciation for industrial heritage. These seemingly ordinary objects document how the electrical revolution gradually transformed human civilization. Collecting them is, in a sense, preserving a fading technological memory.

With advances in modern transmission technology, new materials like polymer composite insulators have been gradually replacing traditional ceramic and glass insulators. Since the 1990s, silicone rubber composite insulators have increasingly captured market share due to their light weight, hydrophobicity, and superior contamination flashover resistance, though their aging behavior and long-term reliability are still being evaluated — which is why ceramic insulators have not yet fully exited the stage. As vintage insulators become increasingly scarce on active power lines, their collectible value and historical significance only grow.

Reexamining Technological Heritage Through the Lens of Industrial Archaeology

What Is the Essence of Insulator Collecting?

Insulator collecting is essentially a form of industrial archaeology. It shares common ground with stamp and coin collecting — all involve gathering specific physical artifacts to trace and preserve the developmental trajectory of a particular field.

Industrial heritage collecting has gradually gained academic recognition in recent years, falling under the scope of Material Culture Studies. Unlike traditional cultural artifacts, industrial products are often mass-produced with clear functional purposes. Their value lies not in scarcity or artistic merit, but in serving as physical evidence of technological evolution. By analyzing the material formulas, manufacturing process marks, and labeling information of products from different eras, researchers can reconstruct the industrial capabilities, supply chain structures, and even geopolitical landscapes of specific periods. Several European and American universities have dedicated Industrial Archaeology programs, and institutions like the Ironbridge Gorge Museum in the UK and the Henry Ford Museum in the US house extensive collections of industrial artifacts.

For technology professionals and enthusiasts, this kind of niche collecting culture offers a unique perspective: technological progress isn't only embodied in cutting-edge chips and algorithms — it's also embedded in the "old things" that once supported entire infrastructures but are now being phased out. They too deserve to be documented, understood, and treasured.

Lessons for the Present

In an era of rapidly advancing artificial intelligence and digital technology, perhaps we should reflect: will the hardware and software systems in widespread use today also become "collectibles" decades from now? And what kind of enthusiasts will emerge, attempting to restore and preserve the technological heritage of our era?

Unlike physical industrial products, the technological heritage of the digital age faces unique preservation challenges. Software depends on specific hardware and operating systems to run, and those platforms themselves are rapidly iterating. Even more pressing is the ephemerality of data formats: proprietary file formats, DRM encryption, and cloud service dependencies could all render digital content inaccessible in a matter of decades. Hardware also presents challenges.
