A Children's Drawing App Accidentally Triggered a New Cellular Automaton: From Edge Case to Algorithmic Discovery

An Accidental Algorithmic Discovery

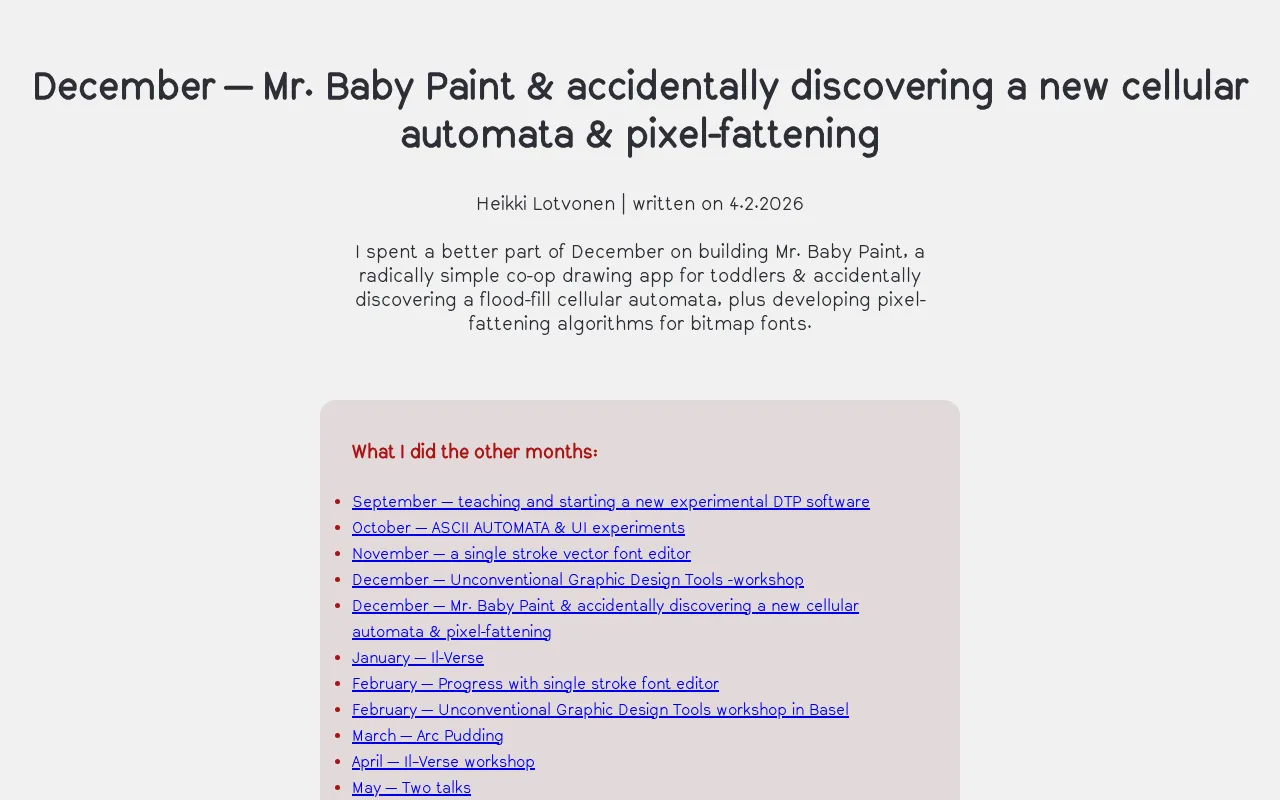

Throughout the history of technological exploration, many important discoveries have emerged from unexpected places. A developer building a children's drawing app called "Mr. Baby Paint" accidentally triggered a Cellular Automata behavior that had never been systematically documented — and the story quickly became a hot topic across the tech community.

What makes this kind of story so captivating is the simple truth it reveals: innovation doesn't always come from grand laboratory projects. Sometimes it hides in the edge cases of a toy app, waiting for someone to notice and ask, "Why is this happening?"

What Are Cellular Automata

The Basic Concept

A cellular automaton is a discrete computational model consisting of a regular grid of cells, where each cell exists in one of a finite number of states (such as "alive" or "dead"). The system synchronously updates every cell according to fixed local rules — meaning each cell's next state is determined by its own current state and those of its neighbors.

The concept was first proposed by mathematicians John von Neumann and Stanislaw Ulam in the late 1940s, originally developed to study self-replicating biological systems. Deeply influenced by cybernetics founder Norbert Wiener, von Neumann sought to answer a fundamental question in mathematical terms: can a machine replicate itself like a living organism? He ultimately designed a complex system with 29 states, containing a "universal constructor" capable of reading a "genetic tape" describing its own structure and building a copy of itself on the grid — an idea that predated the discovery of DNA's double helix by several years, yet already abstractly anticipated the logic of genetic information replication. Later, Stephen Wolfram conducted a systematic classification of one-dimensional elementary cellular automata in the 1980s, grouping all 256 one-dimensional binary rules into four behavioral categories — a framework that remains the primary reference for assessing the "novelty" of any new rule.

The most widely known example is the Game of Life, designed by British mathematician John Conway, which brought the concept to public attention in the 1970s. Using just a few simple rules of survival and death, remarkably complex patterns emerge on the grid: self-moving "gliders," "glider guns" that continuously produce new structures, and even Turing-complete computational structures.

It's worth unpacking that last property — Turing completeness. A computational system is called Turing complete if it can theoretically simulate any Turing machine, meaning it can execute any computable algorithm. Researchers have constructed logic gates, signal wires, and even complete computers within the Game of Life grid. This property profoundly reveals the theoretical ceiling of cellular automata: even with extremely simple rules, a system's computational potential can be equivalent to that of a modern computer — which is precisely why cellular automata research carries genuine computational theory significance beyond mere mathematical aesthetics.

The Wolfram Classification: A Coordinate System for Understanding Complexity

Wolfram's classification system divides cellular automaton behavior into four categories: Class 1 (uniform stability) — all initial states eventually evolve into homogeneous, stable patterns; Class 2 (periodic stability) — produces stable or periodically repeating structures; Class 3 (chaotic randomness) — generates seemingly random, aperiodic patterns; Class 4 (complex edge) — sits between order and chaos, capable of producing persistent local structures. The Game of Life falls into this class, which is also closely associated with Turing completeness.

This framework gives the technical community a basis for evaluating "new discoveries": when a developer claims to have found a new rule, others can compare its evolutionary behavior against the four class characteristics to determine where it falls in the known spectrum — or whether it genuinely opens up a new behavioral mode.

How Simple Rules Produce Complex Behavior

The most fascinating property of cellular automata is emergence: extremely simple local rules, after many iterations, can produce macroscopically complex and unpredictable global behavior. In complexity science, emergence has a precise academic definition: properties displayed by the system as a whole that cannot be directly derived from the properties of its individual components.

This concept connects cellular automata to numerous frontier fields: in biology, ant colony foraging and bird murmurations are considered emergent phenomena; in economics, market price mechanisms are likewise macroscopic results emerging from individual behavior; in neuroscience, consciousness itself may be an emergent product of local neural interactions.

Research into emergence gained new computational tools in the 21st century. The Santa Fe Institute has long used cellular automata as a core research model for complex adaptive systems, exploring questions about the origin of life, economic dynamics, and social network evolution. More recently, the widespread availability of large-scale GPU parallel computing has allowed researchers to simulate the evolution of billions of cells within seconds, making systematic exploration of rule-space feasible.

Also worth noting is Google Brain's 2020 publication on "Neural Cellular Automata," in which each cell's update rule is replaced by a small neural network with shared weights — one of the paper's core authors being Alexander Mordvintsev, the inventor of DeepDream. The training objective was to have the system self-organize from a single seed cell into a target pattern, and to self-repair after random cells were deleted. The deeper insight of this research is that biological morphogenesis is essentially a process of local information processing: DNA does not directly encode organ shapes but instead encodes local interaction rules between cells, with shape itself as an emergent result. This work advanced cellular automata from a purely mathematical model into a trainable generative computational framework, with extensions into three-dimensional morphogenesis and distributed robot control.

The unique value of cellular automata lies in providing a purely controlled mathematical sandbox, allowing researchers to precisely trace "how simple rules grow step by step into complex order" — building computational intuition for understanding complexity in nature and society more broadly. This is precisely why every report of a new rule with distinctive evolutionary characteristics sparks widespread interest in the cellular automata enthusiast community.

How the Accident Happened

At the implementation level, drawing applications typically need to handle state updates of pixel grids — such as color diffusion, brush blending, and flood fill algorithms. These operations share a mathematical foundation with cellular automata: both are essentially neighborhood-based state transitions applied to discrete two-dimensional grids.

Understanding this isomorphism requires tracing back to the core concept of reaction-diffusion systems. In 1952, Alan Turing's paper "The Chemical Basis of Morphogenesis" first described mathematically how patterns on biological surfaces form, proposing that chemical substances could spontaneously generate ordered spatial patterns through the dynamic balance of diffusion and reaction. This paper received almost no attention during Turing's lifetime; it wasn't until 2012 that a research team directly observed Turing mechanisms at work in the formation of palatal rugae in mice, formally connecting this mathematical model to real biological development. In computer graphics, researchers like Karl Sims and Greg Turk discretized reaction-diffusion equations in the 1990s, enabling them to run efficiently on pixel grids to generate natural textures like marine animal skins and mineral crystals — a classic tool in procedural content generation. The flood fill algorithm can likewise be viewed as a degenerate form of cellular automaton: starting from a seed cell and progressively updating states according to neighborhood connectivity rules until the system stabilizes. Common drawing algorithms such as diffusion-limited aggregation (DLA) and reaction-diffusion systems (such as Turing pattern algorithms) can all be seen as cellular automaton variants under special parameters.

It is precisely this underlying isomorphism that allowed a developer focused on creating a children's drawing experience to inadvertently trigger a computational structure with self-organizing properties. One can surmise that while implementing some drawing effect (such as color seepage or dynamic fill), the code logic unintentionally constituted an update rule satisfying certain conditions — and once the parameters of the drawing tool's "color seepage" logic fell within a specific range, it may have crossed the boundary from an engineering feature into a mathematical phenomenon. After repeated iterative runs, self-organizing patterns appeared on the canvas rather than the expected simple drawing feedback. This kind of "the code went sideways and became more interesting" scenario is not uncommon in graphics programming.

Why This Kind of Discovery Matters

The Search Space Is Vast

Even for two-dimensional, binary-state cellular automata, the number of possible rule combinations is enormous. Taking the "Life-like" rule family as an example — these rules share the basic structure of Conway's Game of Life (two-dimensional square grid, binary states, Moore neighborhood) but use different survival and birth conditions — there are theoretically 2^18 (approximately 262,000) such rules. These rules are typically expressed in "B/S notation"; for example, the Game of Life is written as B3/S23, meaning "a new cell is born when it has 3 living neighbors, and survives when it has 2 or 3 living neighbors." Yet of all 262,000 possibilities, only a few hundred have been systematically studied, named, and had their behavioral characteristics documented. What humanity has systematically explored is a mere drop in the ocean. Consequently, through experimentation, visualization, or pure chance, vast numbers of unnamed and unclassified rules still await discovery. With modern computational tools, amateur enthusiasts are fully capable of making genuinely valuable observations.

The Validation Power of Open Source Communities

The ability of such discoveries to be validated and disseminated depends greatly on open technical communities. Hacker News, created by Y Combinator, is one of the most influential discussion platforms in the global tech community. Its unique community mechanisms — a high-quality user base, reputation-weighted comment systems, and a cultural preference for technically deep discussion — make it an ideal validation arena for this kind of fringe scientific discovery.

When a developer shares such a phenomenon on platforms like this, senior practitioners with backgrounds in computer science, mathematics, and physics are often drawn in within hours. They can independently reproduce the code and search existing literature — the most important reference being the LifeWiki database, an authoritative open database established in 2009 and maintained by community volunteers, which by 2024 had catalogued over 2,000 named patterns and detailed analyses of hundreds of rules. LifeWiki uses the standardized RLE format (Run Length Encoded, a compression encoding standard designed specifically for cellular automata patterns), enabling seamless pattern exchange between different software. Beyond LifeWiki, Golly is another key validation tool — an open-source, high-performance cellular automaton simulator using the Hashlife algorithm, capable of simulating evolutionary processes over extremely long time spans with exponential speedup, helping researchers quickly confirm the behavioral stability of new rules on ordinary hardware and thereby determine whether a rule is truly "new." This collaborative verification is an embodiment of the open-source spirit.

From Toy Project to Serious Exploration

This case offers a practical insight for tech practitioners: don't dismiss anomalies in your own projects too quickly. A behavior that looks like a bug might be hiding a pattern worth digging into. Maintaining curiosity about the "unexpected" is often the starting point for interesting discoveries.

Of course, the claim of "discovering a new cellular automaton" still requires rigorous academic validation — the rule must be compared against existing classifications one by one to confirm its uniqueness. But regardless of the final conclusion, this exploration story that began with a children's drawing board has already vividly illustrated the beauty of computation: within simplicity, infinite complexity dwells.

Conclusion

From "Mr. Baby Paint" to cellular automata, this journey reminds us that the boundaries of technological innovation are far more blurred than we imagine. Between toy and research, casually written code and serious mathematical structures, there may be nothing more than one unintentional observation. For every developer, this may be the best encouragement of all — to build, to experiment, and then to pay attention to what you didn't expect to find.

Key Takeaways

• Cellular automata are discrete computational models based on local rules, in which simple rules can give rise to highly complex emergent behavior
• Wolfram's four-class classification system is the primary reference framework for assessing the "novelty" of new rules
• Drawing algorithms and cellular automata share a mathematical foundation, an isomorphism traceable back to Turing's 1952 theory of morphogenesis
• The Life-like rule family theoretically contains approximately 262,000 variants, the vast majority of which have yet to be systematically studied
• Open-source communities (such as Hacker News, LifeWiki, and the Golly simulator) constitute a decentralized peer review mechanism
• Neural Cellular Automata replace local update rules with trainable neural networks, revealing the computational nature of morphogenesis and opening new directions in distributed robot control
