Extracting Structured Data from 3,000+ Pages of Scanned Math Textbooks: A Practical VLM Pipeline Guide

The Problem: When Math Textbooks Hit the Limits of OCR

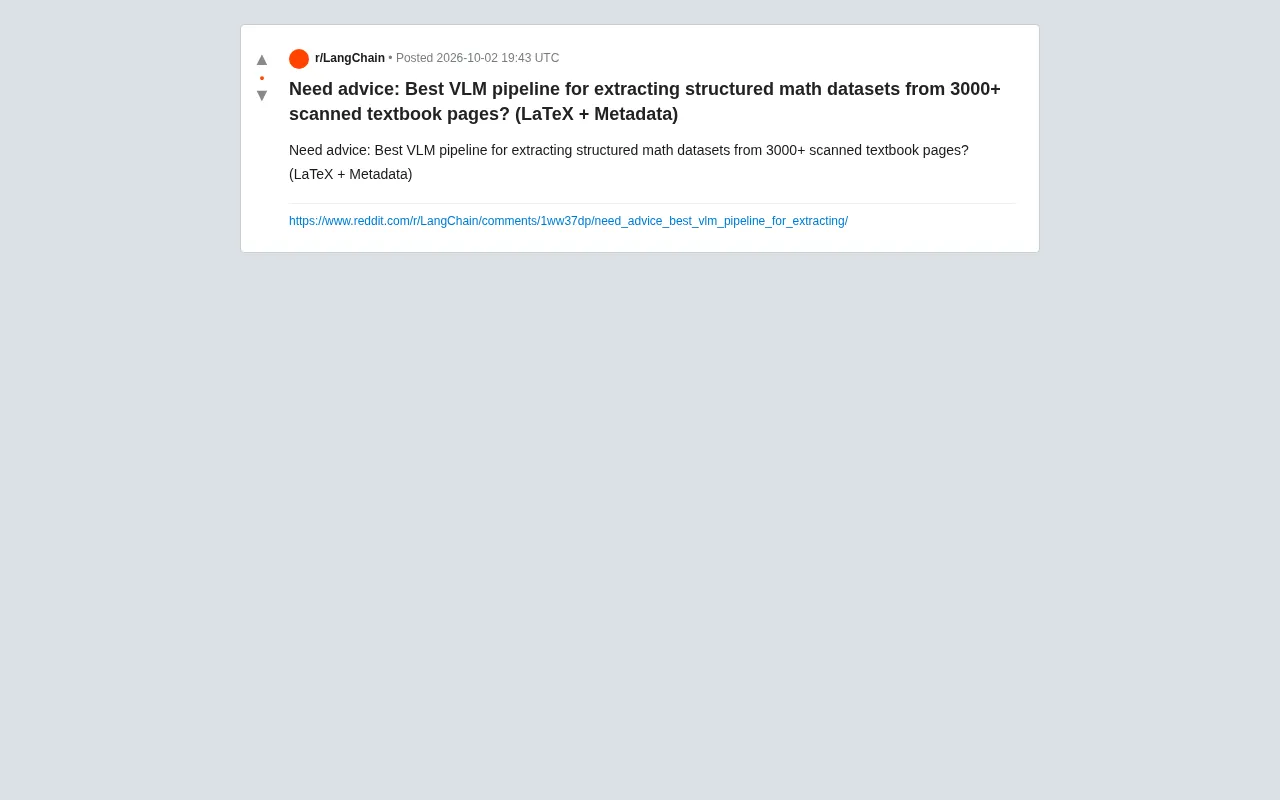

A developer recently posted a representative engineering challenge on Reddit: how to extract a structured mathematics dataset from over 3,000 pages of scanned math textbooks — one that not only captures accurate LaTeX formulas, but also retains metadata.

The ask sounds straightforward, but it cuts right to the heart of some of the thorniest pain points in modern document intelligence. Math textbooks are fundamentally different from ordinary text documents — they're packed with complex mathematical symbols, multi-line equations, matrices, fractions, superscripts and subscripts, and intricate layouts where diagrams and text are tightly interwoven. Traditional OCR tools routinely struggle with this kind of content, but the emergence of Vision-Language Models (VLMs) has opened up new avenues for tackling the problem.

Why Traditional OCR Falls Short

The Structural Challenge of Mathematical Formulas

Conventional OCR excels at recognizing linearly arranged text, but mathematical formulas are inherently two-dimensional symbolic structures. A simple fraction like $\frac{a}{b}$ spans two vertical layers visually, and symbols like integrals, summations, and matrices form deeply nested hierarchies. Converting these accurately into LaTeX requires understanding the spatial relationships between symbols — not just recognizing individual characters.

Noise Introduced by Scanning

Scanned textbooks typically suffer from skew, shadows, uneven ink distribution, and yellowed paper. This noise significantly degrades recognition accuracy, especially for small subscripts and specialized mathematical notation. At the scale of 3,000+ pages, even a 95% per-page accuracy rate leads to a substantial accumulated error count — making post-processing and validation stages absolutely essential.

A Practical VLM Pipeline Design

Layout Analysis First

The first step in handling large-scale documents is layout detection and region segmentation. Specialized document layout analysis models — such as the LayoutLM family or the open-source PP-Structure — can be used to split each page into text blocks, formula blocks, figure blocks, and table blocks. This divide-and-conquer strategy lets downstream specialized models focus on what they do best, significantly improving overall accuracy.

Document layout analysis is fundamentally an object detection and semantic segmentation problem: the goal is to label regions of a page image as "text," "formula," "figure," "table," "header/footer," and so on. Microsoft's LayoutLM series fuses text, positional coordinates, and image modalities during pre-training, making it well-suited for understanding the logical structure of documents. Baidu's PP-Structure, on the other hand, is a production-ready, out-of-the-box pipeline with built-in layout detection, table recognition, and OCR that performs well on both Chinese and English documents. It's worth noting that math textbooks often have high-density formula regions, and the boundary between formulas and body text can be ambiguous — misclassification by the layout model has a cascading effect on downstream recognition. When selecting or fine-tuning a layout model, it's advisable to collect a small number of annotated samples from your target textbooks for domain adaptation, rather than relying directly on generic pre-trained weights.

Specialized Formula Recognition Models

For formula regions, the open-source ecosystem already offers mature solutions. Nougat (Meta's academic document OCR model), for instance, is specifically optimized for scientific paper formulas and typesetting, and outputs a mixed Markdown/LaTeX format directly. Lightweight tools like pix2tex (LaTeX-OCR) are also well-suited for processing individual formula images. Combining these specialized models with a general-purpose VLM typically outperforms any single approach.

Nougat (Neural Optical Understanding for Academic Documents) was released by Meta AI in 2023. Based on a Transformer encoder-decoder architecture and trained on large-scale academic PDF documents paired with their LaTeX source code, Nougat takes a full-page document image as input and directly outputs structured Markdown text. It natively distinguishes between inline and display formulas, and performs especially well on multi-line equations, matrices, and alignment environments like align and equation. pix2tex takes a lighter-weight approach, focusing on recognizing individual formula regions from screenshots or scanned images and restoring them as LaTeX code — making it ideal for processing pre-segmented formula blocks after layout analysis. The primary limitation of both tools is limited robustness to low-quality scans (severe skew, dense staining), so in practice the pipeline typically needs an image pre-processing stage before input — including deskewing, contrast enhancement, and denoising.

General-Purpose VLMs as a Fallback and Semantic Understanding Layer

General-purpose vision-language models such as GPT-4V, Qwen-VL, and InternVL bring powerful contextual understanding to the table, making them well-suited for pages with complex layouts that require semantic reasoning. They can also generate metadata while extracting content — for example, classifying a passage as a definition, theorem, or worked example and tagging it accordingly. This is precisely where the "metadata" component of the original use case gets addressed.

Metadata Extraction and Structured Output

One of the user's core requirements is obtaining a structured dataset, not a simple text transcription. This demands that the pipeline build a hierarchical data model while extracting content:

• Chapter hierarchy: Identifying which chapter, section, and subsection each piece of content belongs to
• Content type: Distinguishing between body text, formulas, definitions, theorems, proofs, worked examples, and exercises
• Formula numbering: Preserving the equation reference numbers from the original book
• Cross-page continuity: Handling formulas or paragraphs that are broken across page boundaries

To accomplish this, you can explicitly instruct the VLM via prompt to output JSON format with a well-defined field schema. Combined with few-shot examples, this dramatically improves the consistency and parseability of the output.

Engineering Considerations for Scale

Balancing Cost and Speed

Sending all 3,000+ pages through a closed-source API like GPT-4V can get extremely expensive. A more pragmatic approach is tiered processing: use open-source models to handle 80% of routine pages, and only route low-confidence or layout-anomalous pages to the high-performance general-purpose VLM. This hybrid strategy strikes a balance between cost and quality.

Closing the Quality Validation Loop

Quality control for large-scale datasets cannot rely on manual page-by-page review. Automated validation mechanisms are essential: run generated LaTeX through syntax compilation checks, flagging entries that fail to compile for manual review; use text similarity or structural consistency checks to surface anomalous outputs. Building this feedback loop is the key to ensuring the final dataset is actually usable.

LaTeX syntax compilation validation is the most direct automated quality gate: embed the generated LaTeX snippet into a minimal compilable template, invoke pdflatex or xelatex to attempt rendering, and capture the compilation error log. Common formula error patterns include mismatched brackets, undefined commands (e.g., \time instead of \times), and malformed environment nesting. Beyond this, you can introduce a "rendering consistency" check: render the generated LaTeX as an image, then compare it against the original scanned region using structural similarity (SSIM) or a dedicated formula recognition model, flagging anything below a similarity threshold for human review. This "recognize → render → compare" loop catches semantic-level errors that pure syntax checking misses — such as a symbol being substituted with a visually similar but semantically different character (e.g., η misrecognized as n). This is especially important when building high-precision datasets.

Conclusion: No Silver Bullet — Combination Is the Answer

Extracting a high-quality, structured mathematical dataset from 3,000+ pages of scanned textbooks cannot be accomplished with any single off-the-shelf tool. The only viable approach is building a pipeline: layout analysis + specialized formula recognition + general VLM understanding + structured output + automated validation. Open-source tools reduce cost and increase throughput; general-purpose large models handle complex edge cases; automated validation safeguards final quality.

For developers facing similar challenges, the recommendation is to first test each pipeline stage on a small batch — say, 50 pages — to determine the optimal combination before scaling up to the full dataset. This incremental validation approach effectively prevents pouring resources into the wrong direction.
