How Table Tennis Robots Read Spin and Adjust Their Swing in Real Time

When Robots Learn to Play Table Tennis

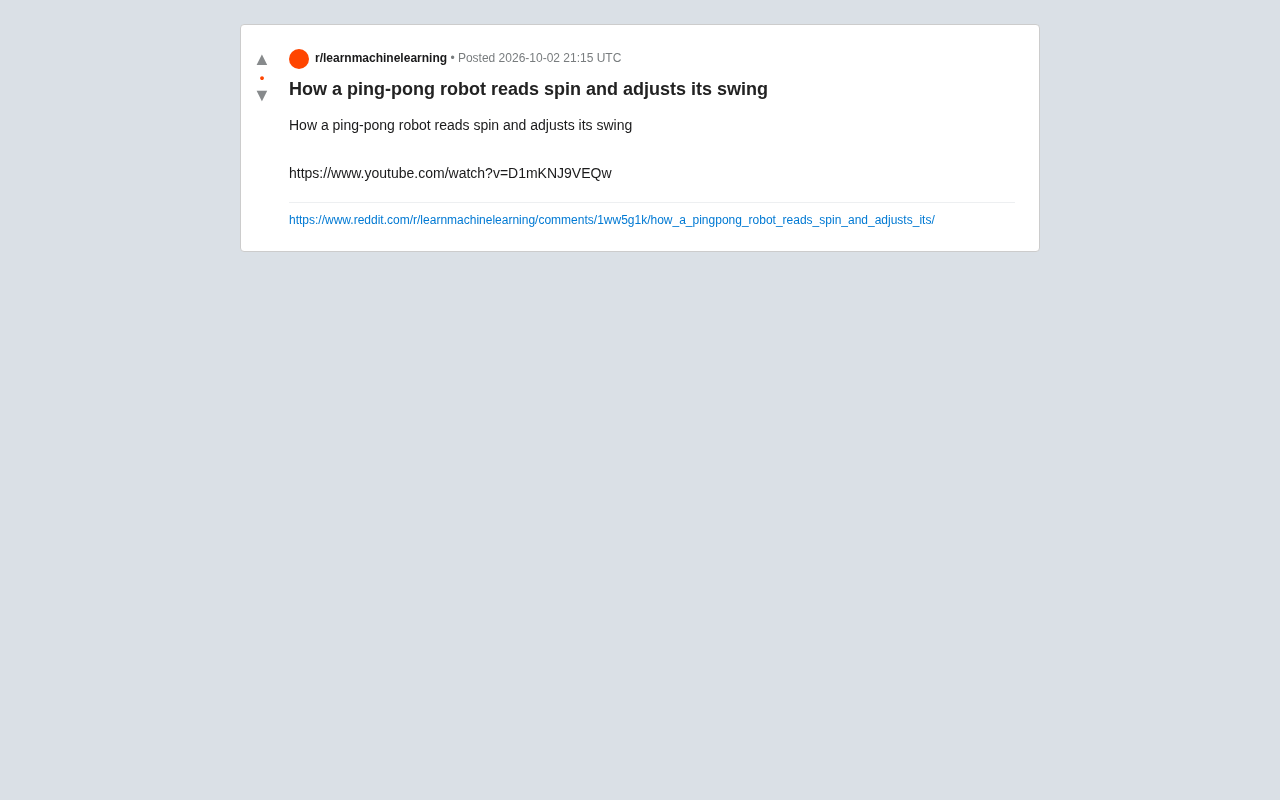

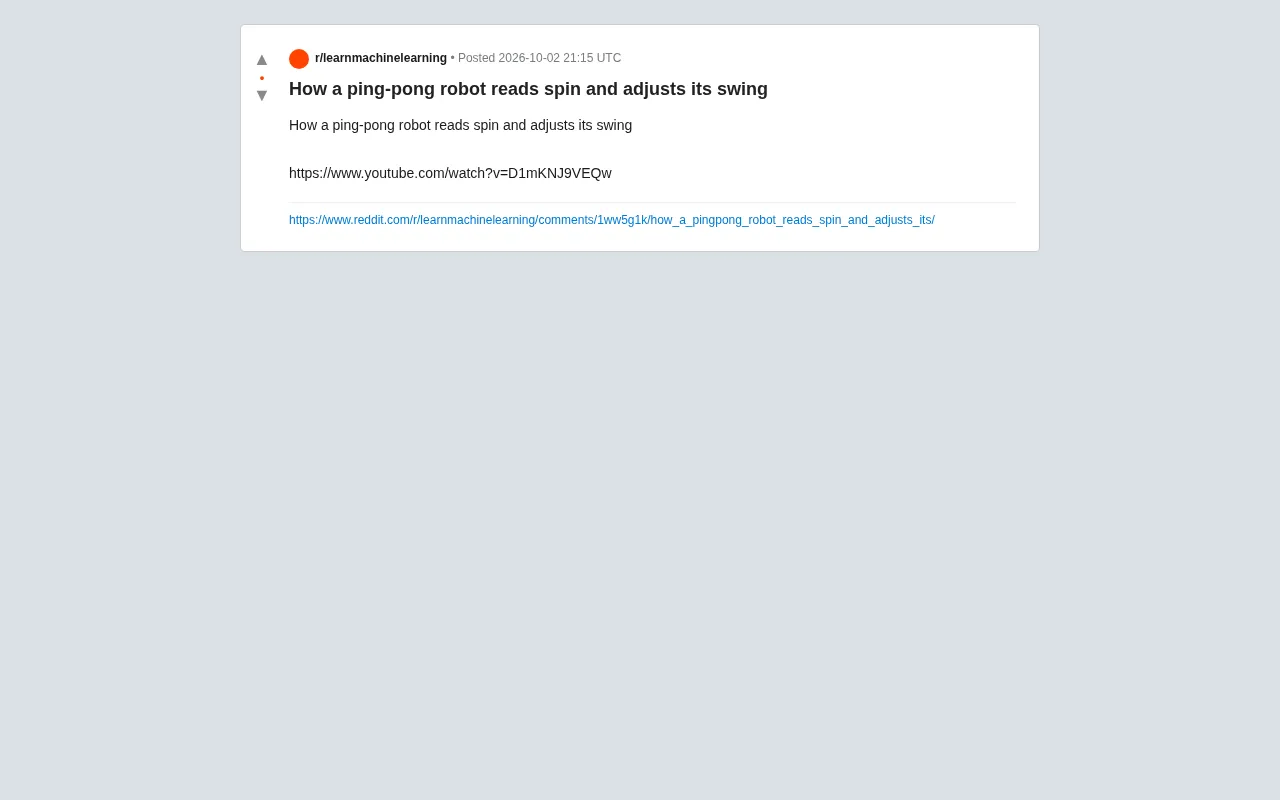

Table tennis has long been considered a sport that demands extreme reaction speed and precision from any machine attempting to play it. Fast ball speeds, constantly changing spin, and unpredictable landing positions combine to make "building a robot that can play table tennis" a classic benchmark for robotic perception and control. A widely circulated demonstration video showing a table tennis robot reading incoming ball spin and adjusting its swing accordingly reveals a technical pipeline worth examining in depth.

A quick note: this article is based on that demonstration video and publicly available discussions. Some technical details represent reasonable inferences about how similar systems work in general, and specific implementations may vary across projects.

Reading the Spin: Perception Is Everything

Spin is the hardest variable to handle in a table tennis rally. Topspin, backspin, and sidespin each produce entirely different flight paths and bounces — even at identical ball speeds, opposite spin directions can send a return in completely different directions.

For a robot to "read spin," it first relies on a high-frame-rate camera tracking the incoming ball in real time. By capturing the displacement of markings or surface texture on the ball across consecutive frames, the system can estimate the ball's axis of rotation and spin rate. Some systems go further and use the flight trajectory itself as a clue — because spin alters the aerodynamic path of the ball through the Magnus effect, the degree of curve in the trajectory is itself evidence of spin.

In other words, the robot doesn't "glance and instantly know the spin." Instead, it builds a three-dimensional motion model of the ball from multiple frames and back-calculates the spin parameters. This places extremely demanding requirements on the vision system's sampling frequency and image processing latency.

The Magnus Effect is the physical foundation for understanding how spinning balls curve through the air. When a spinning ball flies through the air, the rotation causes airflow on one side to speed up (where the spin direction aligns with the oncoming airflow) and slow down on the other side. According to Bernoulli's principle, the faster-moving side has lower pressure, generating a lateral force perpendicular to the flight direction that pushes the ball toward the low-pressure side. Topspin causes the ball to drop faster than a non-spinning ball and bounce lower and more forward after landing; backspin does the opposite, extending flight distance and causing the bounce to angle back toward the net. Because the magnitude of the Magnus force depends on both spin speed and flight speed, the degree of curve in the trajectory itself carries spin information — which is exactly how robotic vision systems back-calculate spin parameters from trajectory curvature, creating a dual-verification mechanism.

Predicting the Landing Spot: From Observation to Decision

Recognizing spin alone isn't enough. The robot must predict, within an extremely short window, where the ball will land and how it will move after bouncing.

This step typically relies on a combination of physics-based and data-driven models. The physics model uses numerical integration over air resistance, gravity, and the Magnus force to simulate the ball's flight; the data-driven model is trained on large numbers of rally samples to compensate for factors that are hard to model precisely — things like table surface material and the coefficient of restitution between ball and table.

The entire prediction process must complete within a few hundred milliseconds of the ball leaving the opponent's paddle, leaving the robot less than half a second to plan its motion. This means perception, prediction, and decision-making must be deeply pipelined — a delay in any single stage can cause a missed return.

The combination of physics-based and data-driven models in robotics is known as hybrid modeling or the residual learning approach. Pure physics models depend on precise parameters (ball mass, radius, drag coefficient), but real-world factors like table wear, ball roundness tolerances, and airflow disturbances are nearly impossible to model completely. Pure data-driven models can fit these deviations automatically from samples, but they generalize poorly to out-of-distribution situations. The typical way to combine both is: the physics model produces a baseline prediction, and a neural network learns the residual error of that physics model, outputting a corrected landing estimate. This design preserves the extrapolation capability that physical knowledge provides, while allowing the system to continuously self-calibrate from real rally data during high-frequency use.

Adjusting the Swing: The Art of Motion Control

Once the landing point is predicted, the real challenge is figuring out how to return the ball. The robot must get the paddle to the right place at the right time — but also at the right paddle angle and swing speed to either neutralize or exploit the incoming spin.

Against backspin, the robot needs to open the paddle face and add an upward swing component, or the return will go into the net. Against topspin, the paddle face must be closed. Sidespin is even more complex, requiring compensation in the horizontal direction. All of these adjustments are dynamically calculated from the spin parameters read in the previous step — they are not pre-programmed fixed motions.

From a control perspective, this requires the robotic arm to have sufficient degrees of freedom and response speed, with drive motors capable of accelerating and decelerating within milliseconds. The swing isn't just about "getting to the right spot" — it's about controlling the paddle's orientation at the exact moment of contact. That's the key to the robot being able to return the ball and control the resulting spin.

Table tennis robots typically use either serial or parallel robotic arm configurations to achieve high-speed swings. Parallel arms (such as Delta robots) fix the motors at the base so the end effector has very low mass, enabling much higher acceleration — a design already proven in industrial pick-and-place applications. However, their workspace is smaller and their orientation degrees of freedom are limited. Serial arms offer larger workspaces and greater flexibility, but have higher end-effector inertia. To adjust paddle orientation within milliseconds, the control system typically runs on a Real-Time Operating System (RTOS), ensuring that motion command execution timing is strictly predictable and avoiding the random scheduling delays introduced by general-purpose operating systems.

The Technical Value of These Projects

A table tennis robot might look like a flashy demo, but it packs in some of the hardest problems in robotics: high-speed visual perception, real-time trajectory prediction, and highly dynamic motion control. A system capable of playing table tennis well demonstrates a mature, integrated capability across the full perception–decision–execution loop.

These technologies are far from limited to sports demonstrations. High-speed object tracking applies to industrial sorting and quality inspection; real-time trajectory prediction is equally critical for autonomous driving and drone obstacle avoidance; and precise dynamic motion control is a foundational capability for service robots, surgical robots, and more. In a sense, the table tennis table has become a standard testing ground for all of these capabilities.

As vision sensor costs fall, computing power increases, and learning algorithms mature, robots will keep improving at high-dynamic tasks like this. A robot that can hold a rally against a human represents a collective leap forward across the entire perception and control technology stack.
