UM1-Evo Bionic Robotic Hand: How 24 Degrees of Freedom Push the Limits of the Human Hand

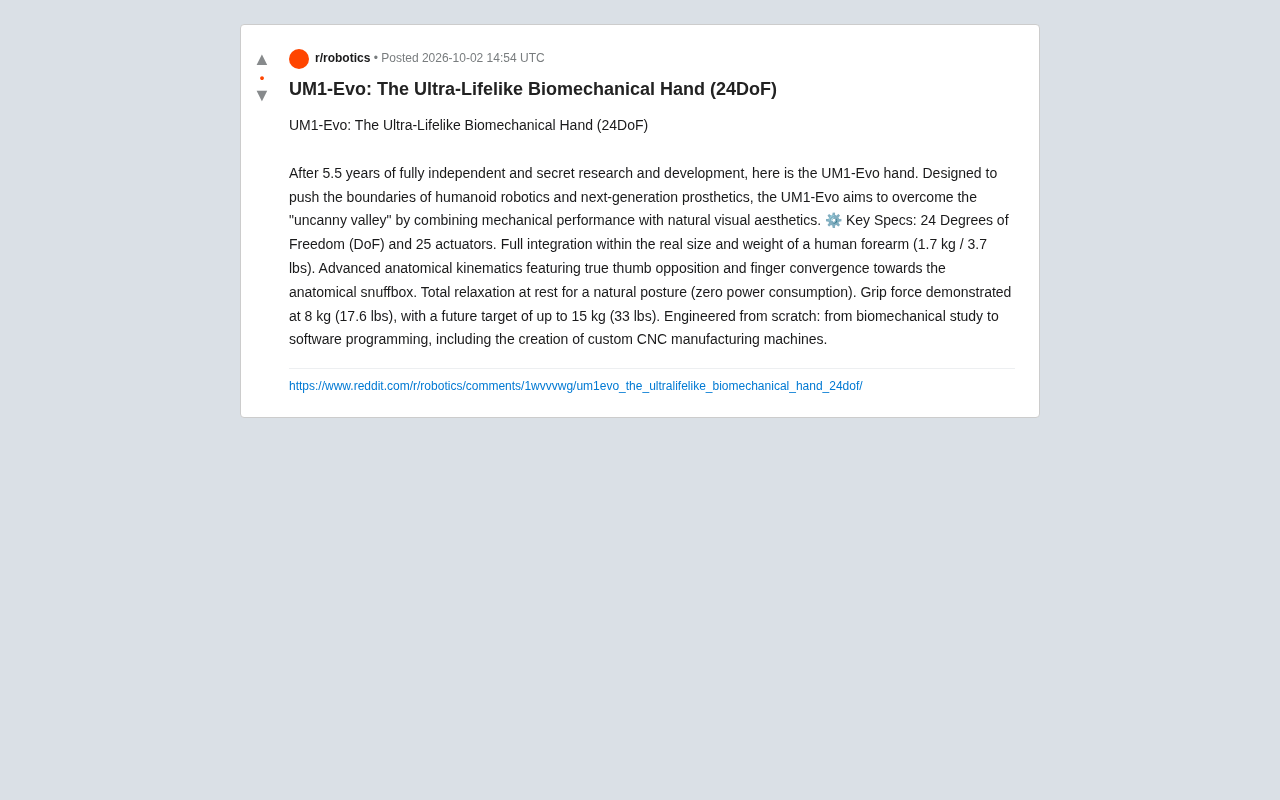

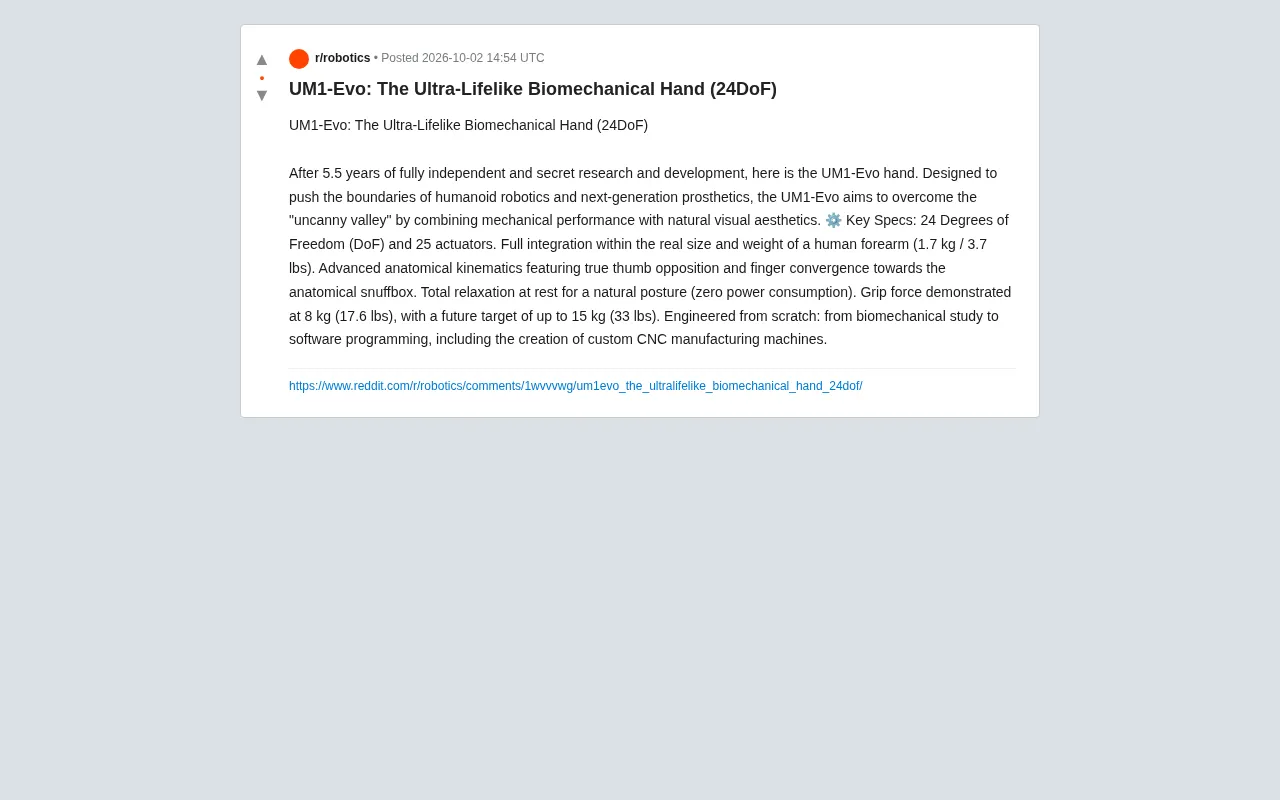

A project developed entirely in secret by an independent developer over five and a half years recently surfaced on Reddit — the UM1-Evo bionic robotic hand. With 24 degrees of freedom and 25 actuators, this hand aims to bridge the long-standing "uncanny valley" challenge in humanoid robotics and next-generation prosthetics, combining mechanical performance with a natural appearance.

Core Specs: Packing Performance into a Human Forearm

The most striking aspect of the UM1-Evo is that it matches the size and weight of a real human forearm. The entire system weighs under 1.7 kg (approximately 3.7 lbs), which falls squarely within the typical weight range of an adult forearm. For prosthetic applications, weight is a critical threshold that determines whether a user can wear the device long-term — an overly heavy prosthetic quickly causes fatigue and rejection.

Within this compact form factor, the developer has integrated 24 degrees of freedom and 25 actuators. The number of degrees of freedom directly determines the range of hand movements possible, and 24 DoF approaches the actual range of motion of a real human hand. By comparison, many commercial prosthetics and robotic hands typically offer only 6 to 12 degrees of freedom, making UM1-Evo's specs quite aggressive for an independent project.

Anatomy-Driven Kinematic Design

This hand is not simply a stack of motors — it is built on genuine anatomical research. The developer highlights several key biomechanical features: true thumb opposition and finger convergence toward the anatomical snuffbox.

Thumb opposition is the core capability behind the human hand's dexterous manipulation and one of the hardest features to replicate in robotic hand design. Achieving precise coordination between the thumb and the remaining fingers means UM1-Evo has the potential to perform fine motor tasks such as grasping and pinching, rather than simply opening and closing as a whole.

Another noteworthy detail is "full passive relaxation at rest." The UM1-Evo maintains a natural resting posture when unpowered, consuming zero energy in that state. This is both an aesthetic consideration — making the hand look more like a real hand rather than a rigid mechanism — and a practical one, significantly reducing power consumption during everyday use.

The anatomical snuffbox is the triangular depression that appears on the dorsal-radial side of the hand when the thumb is extended, bounded by the tendons of the extensor pollicis longus and extensor pollicis brevis. In hand kinematics, the natural convergence of fingers toward this region is a biomechanical characteristic of a real human hand during grasping — the fingers do not close in parallel but converge toward the radial (thumb-side) center of the palm. This convergence trajectory distributes contact more evenly and transfers force more efficiently when gripping cylindrical or spherical objects. Most industrial grippers and low-DoF robotic hands ignore this feature to simplify control, reducing both grip stability and naturalness. By incorporating this anatomical detail into its kinematic design, UM1-Evo sets itself apart from purely function-oriented robotic hands.

Grip Strength and the Ambition to Cross the Uncanny Valley

On the force side, a grip strength of 8 kg (approximately 17.6 lbs) has already been demonstrated, with the developer targeting an eventual 15 kg (approximately 33 lbs). An 8 kg grip is sufficient for most everyday grasping tasks, while the 15 kg target suggests a push toward heavier-duty industrial or assistive applications.

The project's central ambition is to cross the "uncanny valley." The uncanny valley effect refers to the discomfort triggered when a humanoid robot or prosthetic looks almost — but not quite — human. UM1-Evo attempts to navigate this by refining both mechanical performance and natural visual aesthetics simultaneously: the hand must move like a human hand and look like one. This dual emphasis on aesthetics and function is relatively rare in robotic hand development.

The Uncanny Valley theory was proposed by Japanese roboticist Masahiro Mori in 1970. He observed that as a robot or humanoid becomes increasingly human-like, human affinity initially rises — but drops sharply into negative territory in the zone where the likeness is "almost but not quite" human, causing feelings of eeriness, discomfort, or even fear, before rising again as similarity approaches 100%. This effect is especially pronounced in prosthetics: a clearly mechanical hand is accepted, while a highly realistic yet subtly off prosthetic triggers rejection. For prosthetic users, this is not merely an aesthetic issue — it directly affects social integration and long-term willingness to wear the device. For this reason, "crossing the uncanny valley" is considered one of the core design challenges in bionic limb development, not just an engineering performance metric.

Independent Engineering from the Ground Up

Perhaps the most impressive aspect of this project is not any single specification, but its entirely self-directed development path. According to the developer, everything — from biomechanical research and software programming to building custom CNC machining equipment — was completed independently from scratch.

In a field like humanoid robotics and prosthetics that typically depends heavily on teams and capital, a single developer spending 5.5 years quietly completing the full chain from theory to manufacturing is a remarkable case study. It demonstrates the heights an individual developer can reach by combining precision mechanics with control software, and offers a compelling reference point for the open-source and independent hardware community.

It should be noted that the information currently available comes primarily from a single-source demonstration on Reddit. Durability, response speed, control precision, and real-world deployment scenarios have yet to be further verified. For breakthrough projects released by independent developers, it is worth following with interest while waiting for additional third-party test data.

Implications for the Industry

UM1-Evo demonstrates the continued push in bionic robotic hands along the dimension of "biological fidelity." As interest in humanoid robots grows, so does demand for dexterous, lightweight, low-power-consumption end effectors. Whether for the manipulation capabilities of service robots or the daily usability of prosthetics, the hand remains one of the persistent technical bottlenecks.

The value of projects like this lies in proving that high degrees of freedom, human-scale size constraints, and natural aesthetics can coexist within a single design. Even if UM1-Evo has not yet entered mass production or commercialization, the engineering approach it validates — anatomy-driven kinematics, zero passive power consumption, compact integration — offers a replicable direction for future research.
